Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 221183

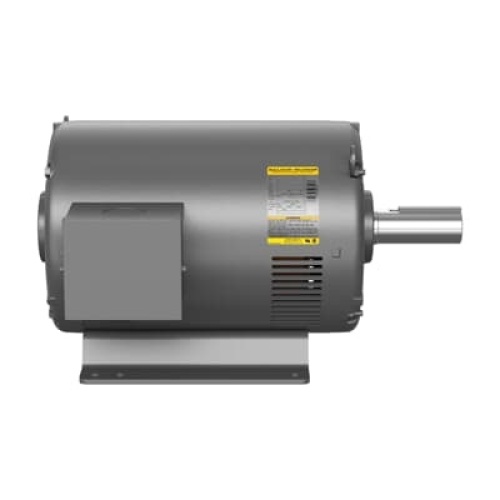

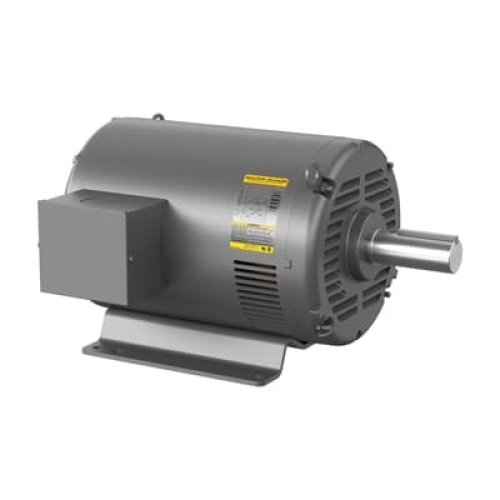

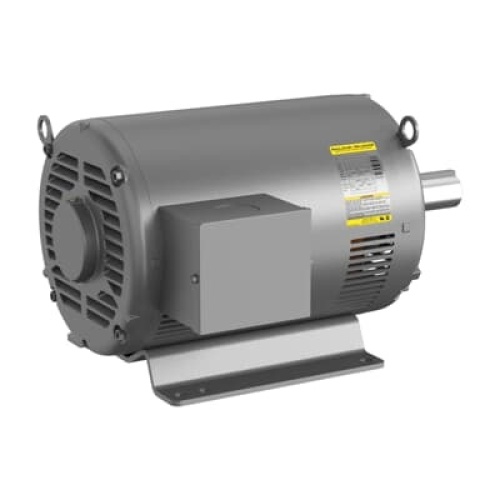

Baldor EHM2539T 40HP, 1770RPM, 3PH, 60HZ, 324T, 4064M, Open Slotted Band, F1
Normally In Stock
Baldor EHM2539T 3 230.0 V @ 60 HZ
460.0 V @ 60 HZ 40 HP @ 60 HZ Open Slotted Band
Condition: New
CALL FOR LEAD TIME$6896.58
Sale Price
$5747.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor EHM2539T 3 230.0 V @ 60 HZ
460.0 V @ 60 HZ 40 HP @ 60 HZ 1770 RPM,1800 RPM @ 60 HZ 49 A @ 460.0 V
98 A @ 230.0 V
99 A @ 208.0 V 60.00 Hz Steel Open Slotted Band
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Frame Model
324T
Motor Horsepower
40 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor NEMA Design
NEMA Design H
Motor Enclosure Type
Open Slotted Band
Motor Amperage (Full Load)
99 Amp
Motor Amperage (Full Load)
98 Amp
Motor Amperage (Full Load)
49 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Baldor-Reliance three phase motors are suitable for inverter use per NEMA MG1 Part 31.4.4.2.
*External provisions for bearing current mitigations
Choose rugged cast iron or rolled steel to match your environment—available in TEFC, TEAO, ODP, and resilient mount enclosures for any HVAC need.
Built for long life and reliability, these motors run cooler under load with Class F insulation and a 1.15 service factor, ensuring extra protection in demanding HVAC conditions.
Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations, regardless of voltage.
