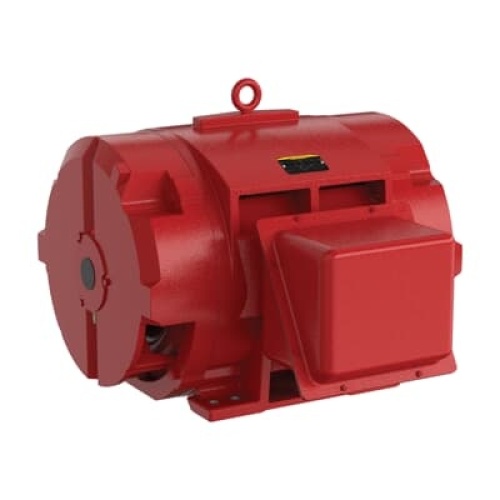

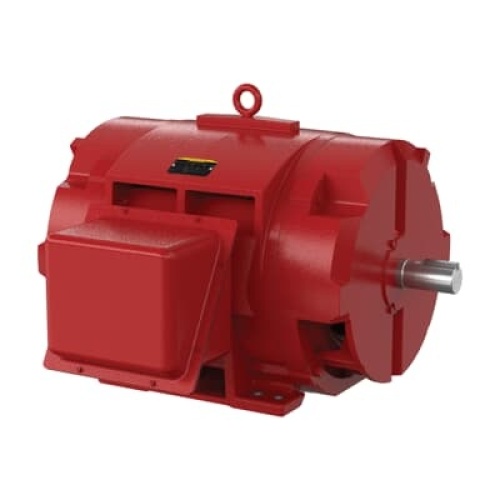

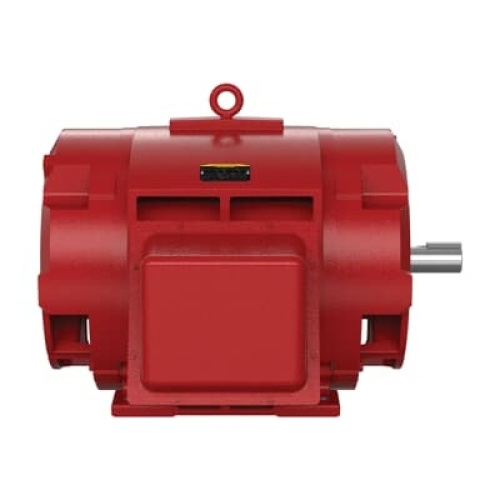

Baldor FPM2568T-4 300/250HP, 60 or 50HZ, 2PL, 3PH, 445TS, OPEN
Normally In Stock
Code: 221110
Baldor FPM2568T-4 3 380.0 V @ 50 HZ
460.0 V @ 60 HZ 300 HP @ 60 HZ
250 HP @ 50 HZ Drip-Proof
Condition: New
CALL FOR LEAD TIME$33675.67
Sale Price
$28063.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor FPM2568T-4 3 380.0 V @ 50 HZ
460.0 V @ 60 HZ 300 HP @ 60 HZ
250 HP @ 50 HZ 2960 RPM
3560 RPM,3600 RPM @ 60 HZ 339 A @ 460.0 V
342 A @ 380.0 V 50.00 Hz
60.00 Hz Iron Drip-Proof
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Frame Model
445TS
Motor Horsepower
250 HP
Motor Horsepower
300 HP
Motor Frequency
60 Hz
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Motor NEMA Design
NEMA Design F
Motor Voltage
380 Volt
Motor Frequency
50 Hz
Motor Enclosure Type
Drip-Proof
Motor Amperage (Full Load)
342 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Motor Amperage (Full Load)
339 Amp
Features
Fire Pump motors are for use on fire pumps installed per NFPA-20. All motors meet UL requirements (File # E481231) in open drip proof enclosures designed for relatively clean and dry environments.
Designed for 50/60Hz operation and available in 200/400V, 230/460V, and 460V configurations. Offered in both horizontal and vertical mounting options
Baldor-Reliance fire pump motors are painted epoxy RAL3002 (Carmine Red) primarily for high visibility and standardization with codes and regulations to NFPA (National Fire Protection Association)
All motors 20Hp and above are 12-lead designs, allowing for wye-delta, DOL or part-winding starting methods to reduce starting current, minimize electrical stress, and ensure reliable emergency readiness
Oversized ball bearings with a locked drive-end (DE) bearing, designed for the pumping industry. Engineered for versatile mounting in any configuration
Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations.
