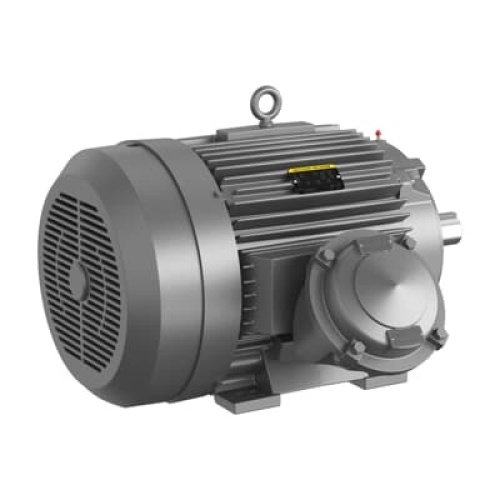

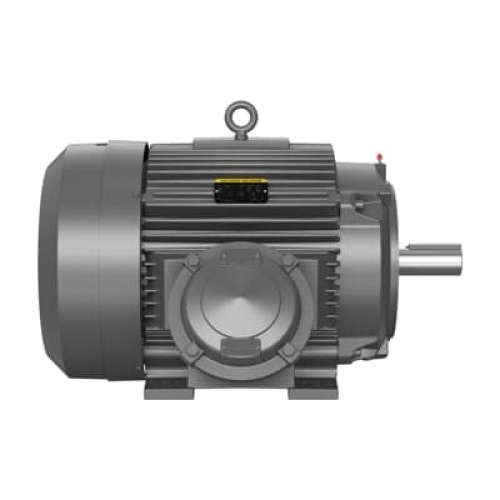

Baldor CCPX36566T 50HP, 1185RPM, 3PH, 60HZ, 365TC, Totally Enclosed Fan Cooled, F1
Normally In Stock
Code: 220455
Baldor CCPX36566T 3 230.0 V @ 60 HZ
460.0 V @ 60 HZ 50 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$22232.02
Sale Price
$18526.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor CCPX36566T 3 230.0 V @ 60 HZ
460.0 V @ 60 HZ 50 HP @ 60 HZ 1185 RPM,1200 RPM @ 60 HZ 124 A @ 230.0 V
61.900 A @ 460.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
50 HP
Motor Frame Model
365TC
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor Amperage (Full Load)
124 Amp
Motor NEMA Design
NEMA Design G
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Motor Amperage (Full Load)
61.9 Amp
Features
Certified for use in hazardous locations and potentially hazardous environments where concentrations of combustible gases, vapors and or dust may be present.
These motors meet UL and CSA standards for use in Division based hazardous locations per NFPA70 National Electric Code and C22.1, the Canadian Electric Code.
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations
Performance enhancing features that make ABB the #1 NEMA motor brand
Compatible with ABB Ability smart sensor for condition monitoring for hazardous locations
