Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

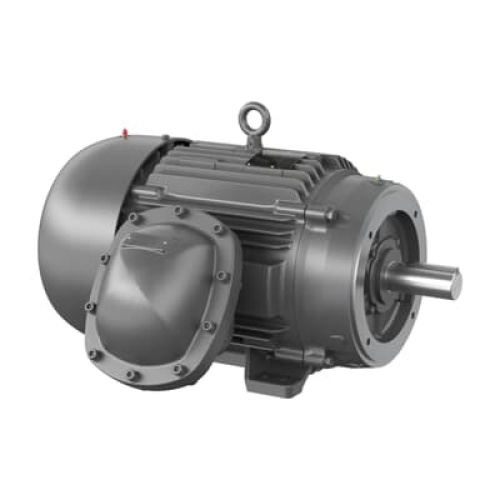

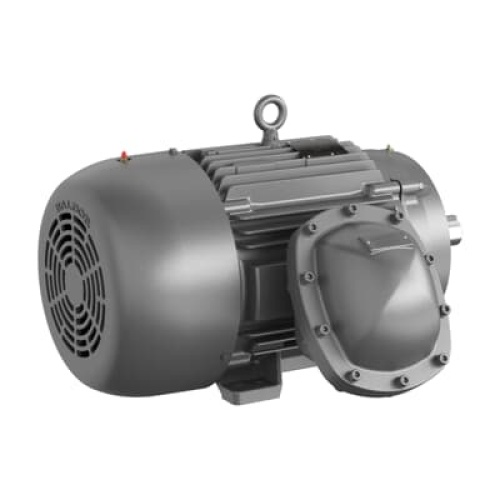

Baldor CCPX322566T 60M 6P Explosion-Proof Fan Cooled HOR 324TCY TSTAT CP FEAT INV
Normally In Stock
Code: 220448
Baldor CCPX322566T 3 380.0 V @ 50 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ
190.0 V @ 50 HZ 20 HP @ 50 HZ
25 HP @ 60 HZ Explosion-Proof Fan Cooled
Condition: New
CALL FOR LEAD TIME$15669.10
Sale Price
$13057.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor CCPX322566T 3 380.0 V @ 50 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ
190.0 V @ 50 HZ 20 HP @ 50 HZ
25 HP @ 60 HZ 1180 RPM
985 RPM,1200 RPM @ 60 HZ 69 A @ 208.0 V
63 A @ 230.0 V
62 A @ 190.0 V
32 A @ 460.0 V
31 A @ 380.0 V 50.00 Hz
60.00 Hz Iron Explosion-Proof Fan Cooled
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
20 HP
Motor Horsepower
25 HP
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor Amperage (Full Load)
62 Amp
Motor Amperage (Full Load)
63 Amp
Motor Amperage (Full Load)
69 Amp
Motor Amperage (Full Load)
31 Amp
Motor NEMA Design
NEMA Design H
Motor Voltage
380 Volt
Motor Frequency
50 Hz
Motor Enclosure Type
Explosion-Proof Fan Cooled
Motor Voltage
190 Volt
Motor Frame Model
324TCY
Motor Amperage (Full Load)
32 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Features
Certified for use in hazardous locations and potentially hazardous environments where concentrations of combustible gases, vapors and or dust may be present.
These motors meet UL and CSA standards for use in Division based hazardous locations per NFPA70 National Electric Code and C22.1, the Canadian Electric Code.
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations
Performance enhancing features that make ABB the #1 NEMA motor brand
Compatible with ABB Ability smart sensor for condition monitoring for hazardous locations
Code: 220448
