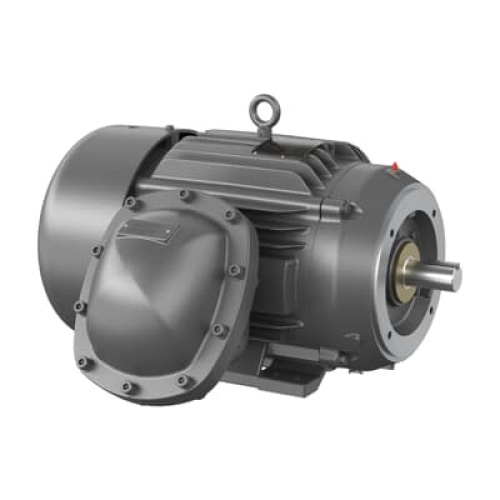

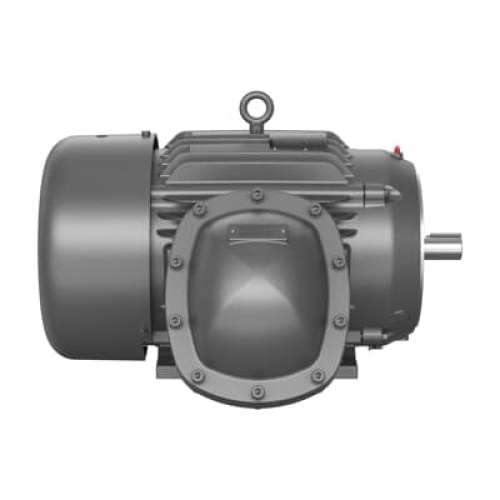

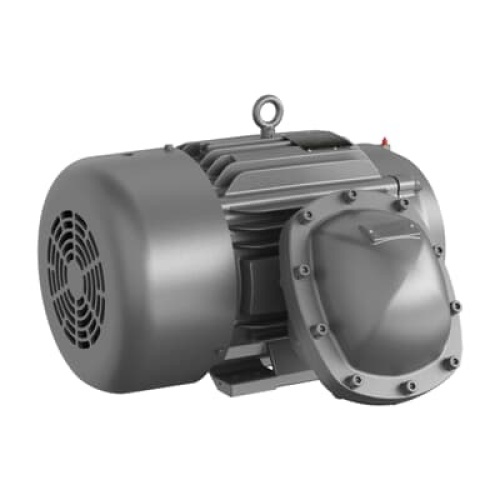

Baldor CCPX28326T 30HP, 3520 or 2920RPM, 3PH, 60HZ, 286TSCY, Explosion-Proof Fan Cooled
Normally In Stock
Code: 220446
Baldor CCPX28326T 3 190.0 V @ 50 HZ
230.0 V @ 60 HZ
380.0 V @ 50 HZ
460.0 V @ 60 HZ 25 HP @ 50 HZ
30 HP @ 60 HZ Explosion-Proof Fan Cooled
Condition: New
CALL FOR LEAD TIME$12800.54
Sale Price
$10667.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor CCPX28326T 3 190.0 V @ 50 HZ
230.0 V @ 60 HZ
380.0 V @ 50 HZ
460.0 V @ 60 HZ 25 HP @ 50 HZ
30 HP @ 60 HZ 3520 RPM,3600 RPM @ 60 HZ 72 A @ 208.0 V
68 A @ 190.0 V
66 A @ 230.0 V
34 A @ 380.0 V
33 A @ 460.0 V 50.00 Hz
60.00 Hz Iron Explosion-Proof Fan Cooled
Specifications
Motor Voltage Phases
3 Phase
Motor Horsepower
25 HP
Motor Horsepower
30 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Motor Amperage (Full Load)
66 Amp
Motor Amperage (Full Load)
33 Amp
Motor Amperage (Full Load)
72 Amp
Motor NEMA Design
NEMA Design G
Motor Voltage
380 Volt
Motor Frequency
50 Hz
Motor Insulation Class
Class B Insulation
Motor Enclosure Type
Explosion-Proof Fan Cooled
Motor Voltage
190 Volt
Motor Frame Model
286TSCY
Motor Amperage (Full Load)
68 Amp
Motor Amperage (Full Load)
34 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Features
Certified for use in hazardous locations and potentially hazardous environments where concentrations of combustible gases, vapors and or dust may be present.
These motors meet UL and CSA standards for use in Division based hazardous locations per NFPA70 National Electric Code and C22.1, the Canadian Electric Code.
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations
Performance enhancing features that make ABB the #1 NEMA motor brand
Compatible with ABB Ability smart sensor for condition monitoring for hazardous locations
