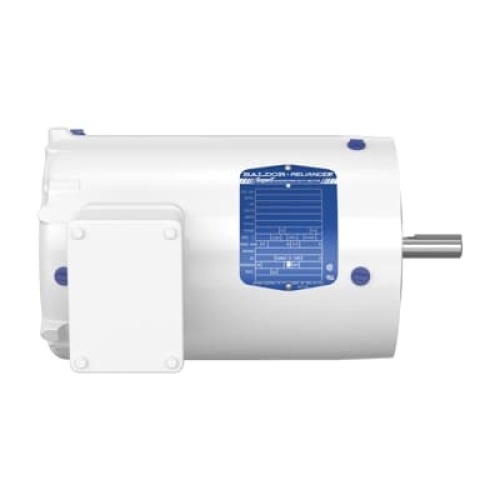

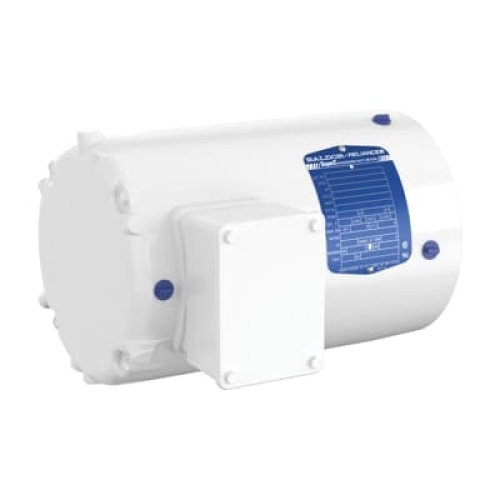

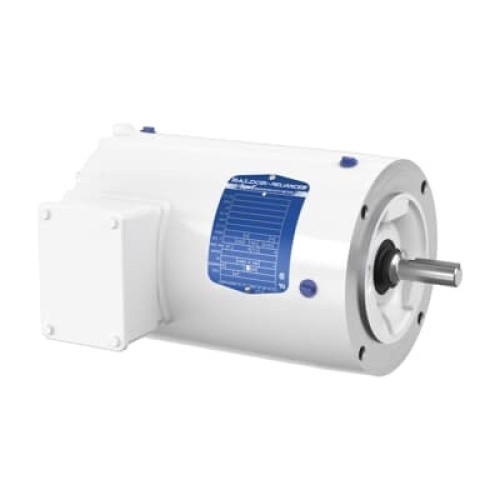

Baldor VWDM3538 .5HP, 1740RPM, 3PH, 60HZ, 56C, 3512M, Totally Enclosed Non-Vented, F1
Normally In Stock
Code: 220170
Baldor VWDM3538 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ .500 HP @ 60 HZ Totally Enclosed Non-Vented
Condition: New
CALL FOR LEAD TIME$1007.58
Sale Price
$839.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor VWDM3538 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ .500 HP @ 60 HZ 1740 RPM,1800 RPM @ 60 HZ .800 A @ 460.0 V
1.600 A @ 230.0 V
1.800 A @ 208.0 V 60.00 Hz Steel Totally Enclosed Non-Vented
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Frame Model
56C
Motor Horsepower
0.5 HP
Motor NEMA Design
NEMA Design M
Motor Enclosure Type
Totally Enclosed Non-Vented
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
300 series stainless steel hardware, moisture sealant on bolt heads, between frame and endplates
Neoprene gaskets
Double sealed ball bearings
Lip and V-Ring seal on drive end
Stainless steel shaft extension
Electrostatically applied epoxy finish over autophoretic primer
Class F insulation
Super-E® motors have NEMA Premium® efficiency and 3 year warranty.
