Code: 220165

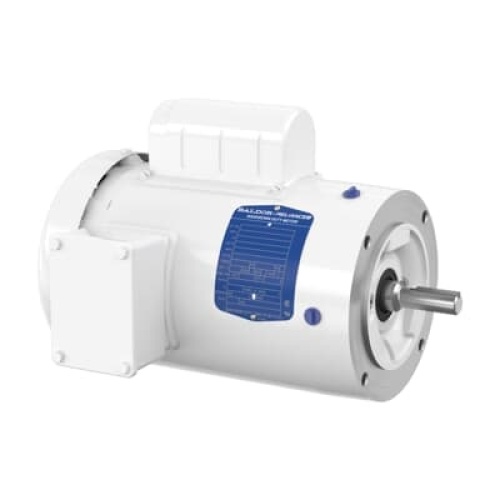

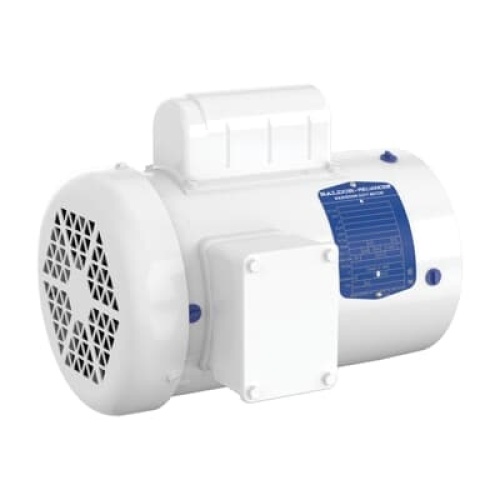

Baldor VWDL3507 .75HP, 1725RPM, 1PH, 60HZ, 56C, 3520L, Totally Enclosed Fan Cooled, F1
Normally In Stock
Baldor VWDL3507 1 230.0 V @ 60 HZ
115.0 V @ 60 HZ .750 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$1137.65
Sale Price
$948.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor VWDL3507 1 230.0 V @ 60 HZ
115.0 V @ 60 HZ .750 HP @ 60 HZ 1725 RPM,1800 RPM @ 60 HZ 11 A @ 115.0 V
5.500 A @ 230.0 V
7 A @ 208.0 V 60.00 Hz Steel Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Insulation Class
Class F Insulation
Motor Horsepower
0.75 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor RPM's
1800 RPM
Motor Voltage
115 Volt
Motor Voltage Phases
1 Phase
Motor Frame Model
56C
Motor Amperage (Full Load)
7 Amp
Motor Amperage (Full Load)
11 Amp
Motor NEMA Design
NEMA Design N
Motor Amperage (Full Load)
5.5 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
300 series stainless steel hardware, moisture sealant on bolt heads, between frame and endplates
Neoprene gaskets
Double sealed ball bearings
Lip and V-Ring seal on drive end
Stainless steel shaft extension
Electrostatically applied epoxy finish over autophoretic primer
Class F insulation.
