Code: 219967

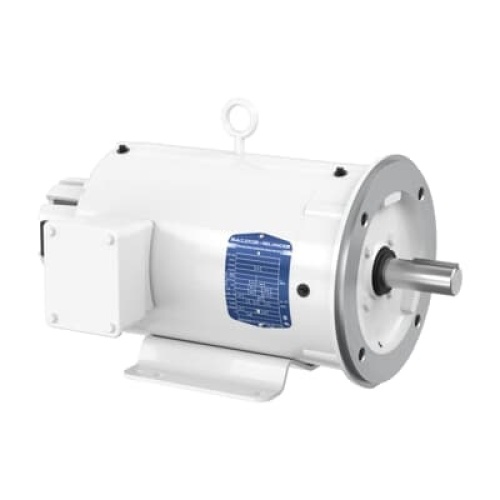

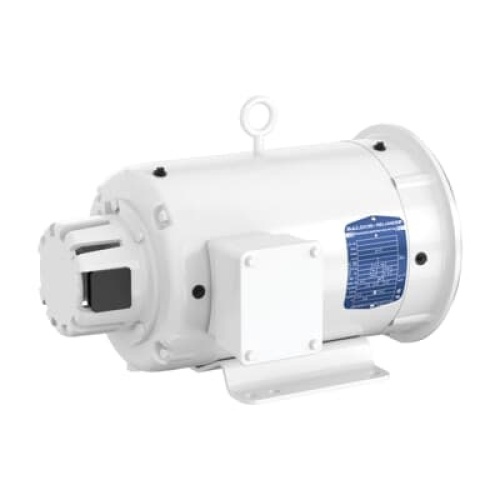

Baldor IDWNM3611T 3HP, 1760RPM, 3PH, 60HZ, 184TC, 3640M, Totally Enclosed Non-Vented, F1
Normally In Stock
Baldor IDWNM3611T 3 230.0 V @ 60 HZ
460.0 V @ 60 HZ 3 HP @ 60 HZ Totally Enclosed Non-Vented
Condition: New
CALL FOR LEAD TIME$3182.04
Sale Price
$2651.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor IDWNM3611T 3 230.0 V @ 60 HZ
460.0 V @ 60 HZ 3 HP @ 60 HZ 1760 RPM,1800 RPM @ 60 HZ 4.100 A @ 460.0 V
8.200 A @ 230.0 V 60.00 Hz Steel Totally Enclosed Non-Vented
Specifications
Motor Voltage Phases
3 Phase
Motor Horsepower
3 HP
Motor Frame Model
184TC
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Amperage (Full Load)
4.1 Amp
Motor NEMA Design
NEMA Design K
Motor Enclosure Type
Totally Enclosed Non-Vented
Motor Insulation Class
Class H Insulation
Motor Amperage (Full Load)
8.2 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required
Provisions for mounting optional HS25 encoder feedback devices (shown in Inverter/Vector section) for use in closed loop velocity or position control
Meets NEMA MG 1, Part 31
1.00 Service Factor
Class “H” insulated
2700 RPM constant Hp speed
Includes phase insulation and thermostats.
