Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

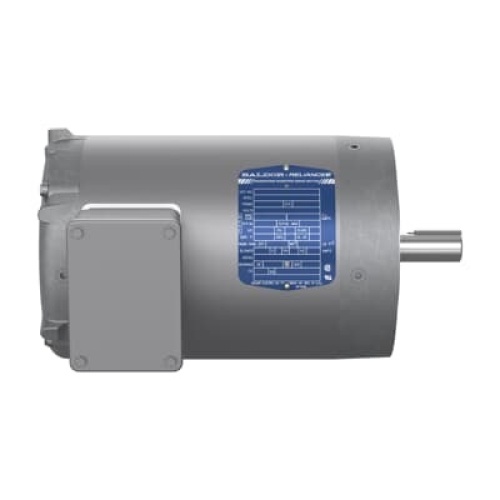

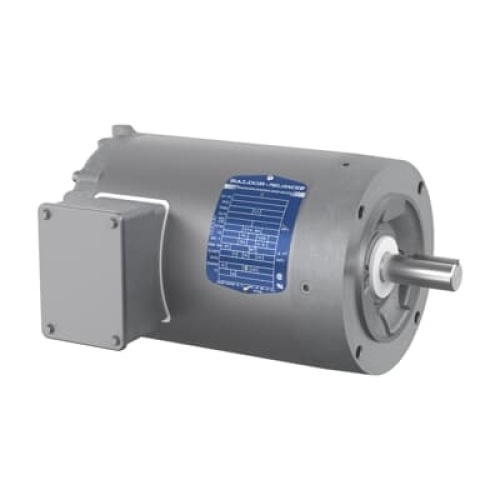

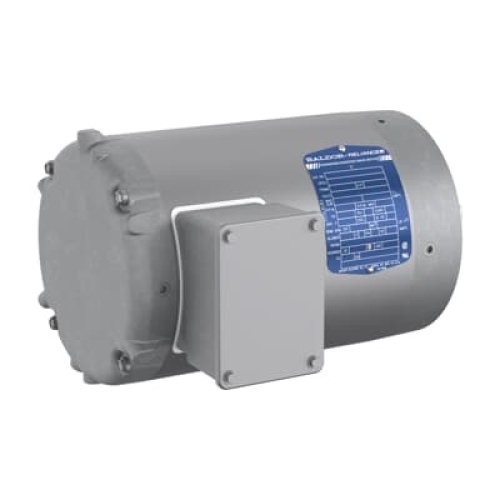

Baldor IDVSWDM3546T 1HP, 1745RPM, 3PH, 60HZ, 143TC, 3524M, Totally Enclosed Non-Vented, F1
Normally In Stock
Code: 219955
Baldor IDVSWDM3546T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 1 HP @ 60 HZ Totally Enclosed Non-Vented
Condition: New
CALL FOR LEAD TIME$2768.47
Sale Price
$2307.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor IDVSWDM3546T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 1 HP @ 60 HZ 1745 RPM,1800 RPM @ 60 HZ 1.450 A @ 460.0 V
2.900 A @ 230.0 V
3 A @ 208.0 V 60.00 Hz Stainless Steel Totally Enclosed Non-Vented
Specifications
Motor Voltage Phases
3 Phase
Motor Horsepower
1 HP
Motor Frame Model
143TC
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Amperage (Full Load)
3 Amp
Motor Amperage (Full Load)
2.9 Amp
Motor Amperage (Full Load)
1.4 Amp
Motor NEMA Design
NEMA Design M
Motor Enclosure Type
Totally Enclosed Non-Vented
Motor Insulation Class
Class H Insulation
Manufacturer
Baldor-Reliance
Motor Construction
Stainless Steel
Features
Corrosion-resistant 300 series stainless steel hardware and shaft extension, two-part epoxy finish that is five times more resistant to corrosion and chipping than standard paint.
Sealed motor with neoprene gaskets, lip, v-ring seal on DE to keep moisture from entering the motor.
Simple maintenance with four removable condensation drain plugs for complete drainage, regardless of position to extend the life of the motor.
White Washdown line comes in single and three phase, pump designs, brake motors, shaft grounding, and sinewave and inverter duty.
By utilizing sealed bearings, relubrication and maintenance is minimized
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
