Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

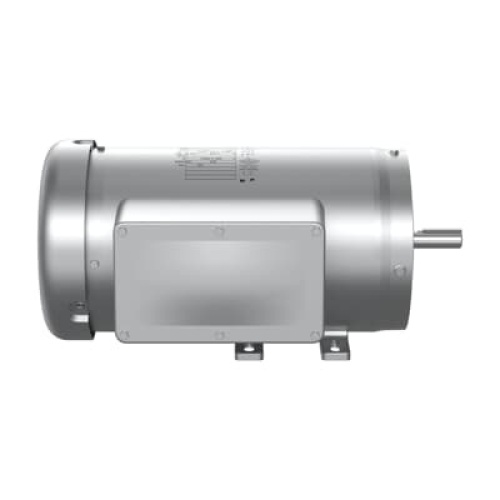

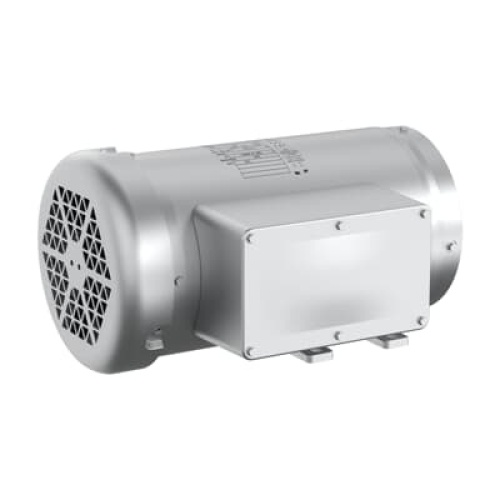

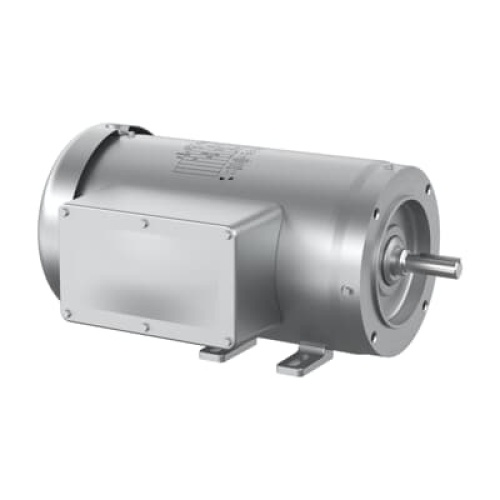

Baldor CFSWDL3510 1HP, 1730RPM, 1PH, 60HZ, 56C, 3540L, Totally Enclosed Fan Cooled, F1, N
Normally In Stock
Code: 219795
Baldor CFSWDL3510 1 115.0 V @ 60 HZ
230.0 V @ 60 HZ 1 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$2543.63
Sale Price
$2119.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor CFSWDL3510 1 115.0 V @ 60 HZ
230.0 V @ 60 HZ 1 HP @ 60 HZ 1730 RPM,1800 RPM @ 60 HZ 11.600 A @ 115.0 V
5.800 A @ 230.0 V 60.00 Hz Stainless Steel Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Insulation Class
Class F Insulation
Motor Horsepower
1 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor RPM's
1800 RPM
Motor Voltage
115 Volt
Motor Voltage Phases
1 Phase
Motor NEMA Design
NEMA Design L
Motor Frame Model
56C
Motor Amperage (Full Load)
5.8 Amp
Motor Amperage (Full Load)
11.6 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Stainless Steel
Features
Single phase ratings have a single conduit box to house the capacitor and leads. Mechanical joints are minimized to one central box that has a gasket with flashing to prevent water from entering the conduit area.
Corrosion-resistant 300 series stainless steel frame, endplates, conduit box, shaft, base, and hardware
IP69 for water, internal and external shaft sealing, o-ring sealed endplates are some of the features that make this easy to clean for food safety.
The nameplate is laser-etched directly onto the motor band, providing quick and easy access to essential technical information
Smooth contours reduce catch points and contamination making it easy to clean, while advanced sealing allows for high pressure cleaning without damage to the motor
Individually welded feet for washdown to clean under the motor, and smooth heads on external drains and hardware make it easy for cleaning.
