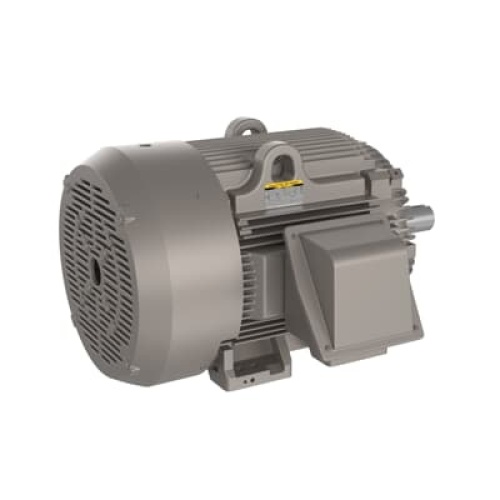

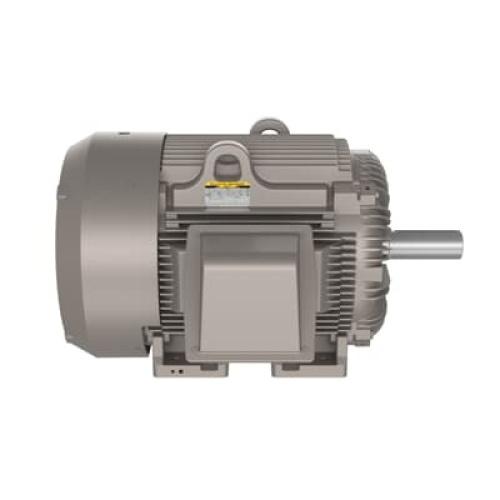

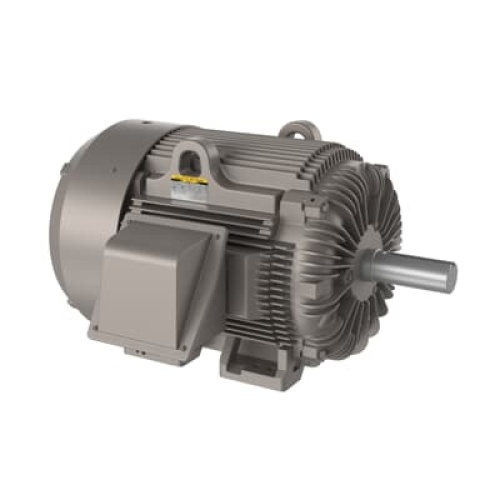

Baldor ECR9606TR 60HP, 1185RPM, 3PH, 60HZ, 404T, A40064M, Totally Enclosed Fan Cooled
Normally In Stock
Code: 219727
Baldor ECR9606TR 3 230.0 V @ 60 HZ
460.0 V @ 60 HZ 60 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$16325.58
Sale Price
$13604.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor ECR9606TR 3 230.0 V @ 60 HZ
460.0 V @ 60 HZ 60 HP @ 60 HZ 1185 RPM,1200 RPM @ 60 HZ 141 A @ 230.0 V
70.700 A @ 460.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
60 HP
Motor Frame Model
404T
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor Amperage (Full Load)
141 Amp
Motor NEMA Design
NEMA Design H
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Motor Amperage (Full Load)
70.7 Amp
Features
Fit-for-purpose motor that is designed for the application with high start-up and breakdown torque that is intended for crushing applications
Design A allows for high starting torques required by many of the demanding applications in the aggregate industry.
A service factor of 1.25 thru 100 hp and 1.15 for more than 100 hp allows for operation during peak loading conditions.
Heavy duty cast iron frames construction (frame, endplates, conduit box and fan cover) for durability
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
Oversized ball bearings up to 50 hp, ball and roller bearing design 60 hp and up.
