Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

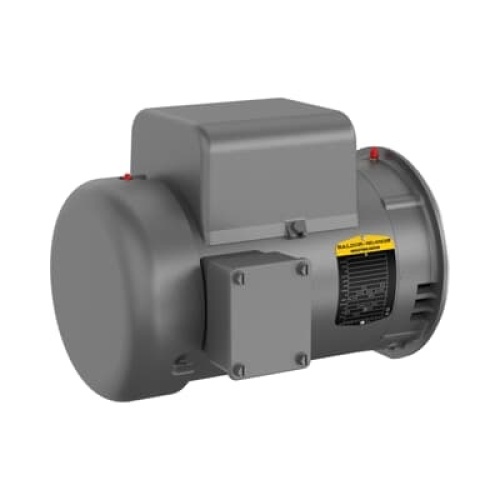

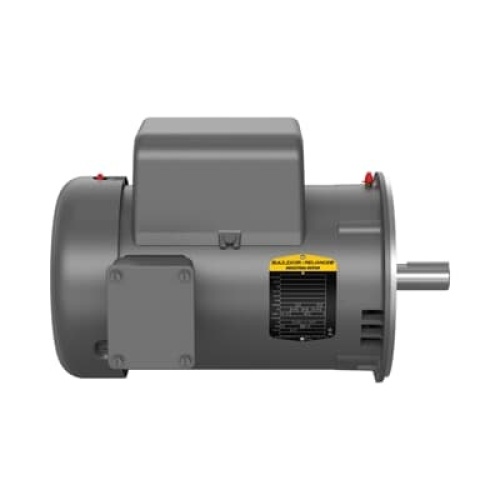

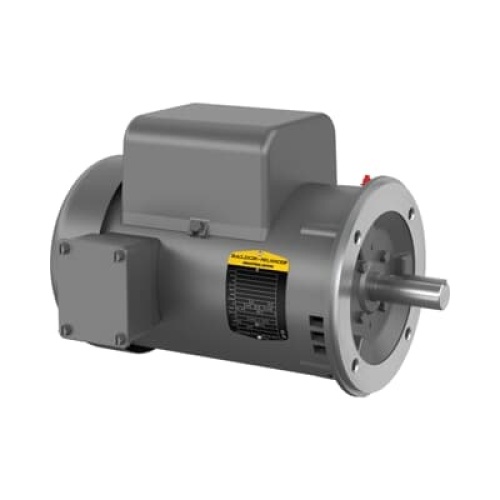

Baldor VL1408T 3HP, 1725RPM, 1PH, 60HZ, 184TC, 3634LC, OPEN
Normally In Stock
Code: 219189
Baldor VL1408T 1 230.0 V @ 60 HZ
115.0 V @ 60 HZ 3 HP @ 60 HZ Open Drip-Proof Tandem Fan
Condition: New
CALL FOR LEAD TIME$1547.66
Sale Price
$1289.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor VL1408T 1 230.0 V @ 60 HZ
115.0 V @ 60 HZ 3 HP @ 60 HZ 1725 RPM,1800 RPM @ 60 HZ 16 A @ 230.0 V
16.800 A @ 208.0 V
32 A @ 115.0 V 60.00 Hz Steel Open Drip-Proof Tandem Fan
Specifications
Motor Insulation Class
Class F Insulation
Motor Horsepower
3 HP
Motor Frame Model
184TC
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor RPM's
1800 RPM
Motor Voltage
115 Volt
Motor Voltage Phases
1 Phase
Motor NEMA Design
NEMA Design H
Motor Enclosure Type
Open Drip-Proof Tandem Fan
Motor Amperage (Full Load)
16 Amp
Motor Amperage (Full Load)
32 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Motor Amperage (Full Load)
16.8 Amp
Features
All motors meet or exceed NEMA Premium® efficiency energy requirements for US, Canada and Mexico.
High grade materials make up a strong insulation system with Class F insulation and Class B temperature rise for operation in higher ambient temperature, overload conditions, and voltage tolerances.
Offer a wide variety of enclosure construction from industrial steel band open designs used in relatively clean environments
to totally enclosed cast iron designs where exposure to water, dust, and corrosives exists.
All 3 phase motors are inverter duty per NEMA MG1 Part 31
General Purpose motors are versatile to perform reliably in a variety of operations where highly custom and hazardous location certifications are not needed.
Baldor-Reliance motors are built in US manufacturing facilities and available from our industry leading global distribution network - and are available when and where you need them.
