Hoffman AST44 Swivel Tilt HMI

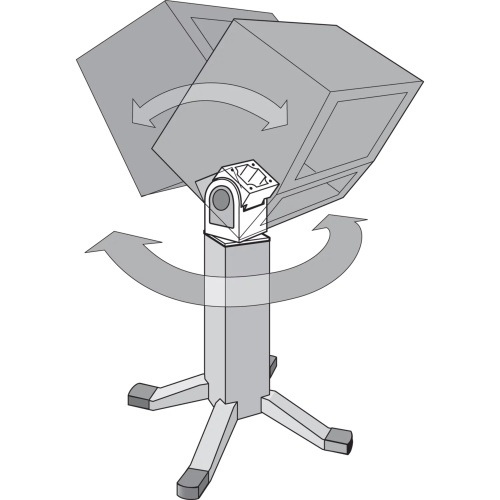

Hoffman AST44 Swivel Tilt HMI Combination swivel and tilt mechanism allows a machine operator to rotate and also tilt an HMI enclosure for safe operation and optimum viewing. Designed for use between the bottom of an HMI enclosure and a pedestal. Swivel feature allows maximum rotation of 350 degrees. Integral stops are provided at 30-degree increments between 60 degrees and 180 degrees of rotation. Swivel can be locked in any position. Tilt allows forward and backward movement up to 30 degrees from horizontal. Tilt lock has a large release knob that allows quick incremental adjustment.

Specifications
Component	Swivel Tilt
(Leg or Stand) Compostion	Aluminum
Line	InLine
Manufacturer	Hoffman
Line	CONCEPT
