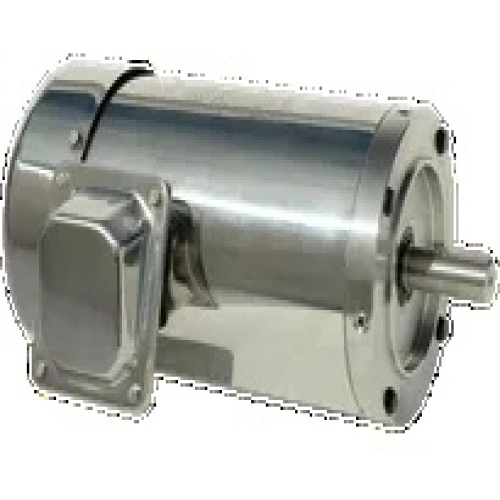

NAE PESS182TC3M-2 Electric Motor Washdown Duty, 208-230 Volt, 460 Volt, 3 Phase, 3 HP, 8.8 - 8.1 Amp, 4.05 Amp
Normally In Stock
Code: 217586
NAE PESS182TC3M-2 Electric Motor 3 HP, 3600 RPM, 182TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Feet
Condition: New
Usually ships Same Day or Next Day$1843.74
Sale Price
$1536.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE PESS182TC3M-2 Electric Motor 3 HP, 3600 RPM, 182TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Feet
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
3 HP
Motor Frame Model
182TC
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Motor Voltage
208-230 Volt
Manufacturer
North American Electric Motors
Motor Amperage (Full Load)
8.8 - 8.1 Amp
Motor Amperage (Full Load)
4.05 Amp
Motor Frame Construction
Stainless Steel
Features
.33-20 HP in stock
Service factor: 1.15 @ 60 Hz, 1.0 @ 50 Hz
NEMA Design B Performance/ High starting torque
Round conduit box for easy cleaning
Encapsulated windings
Dual-drilled feet for mounting flexibility
Double sealed bearings on both ends
2-year warranty
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
IP66 protection
Condensation drains with plugs
NEMA MG-1, Table 12-12
40° C ambient continuous duty
Dual voltage ratings suitable for part wind start on lower voltage
Windings rated for 2200V peak voltage spikes
.304 stainless steel shaft and body
