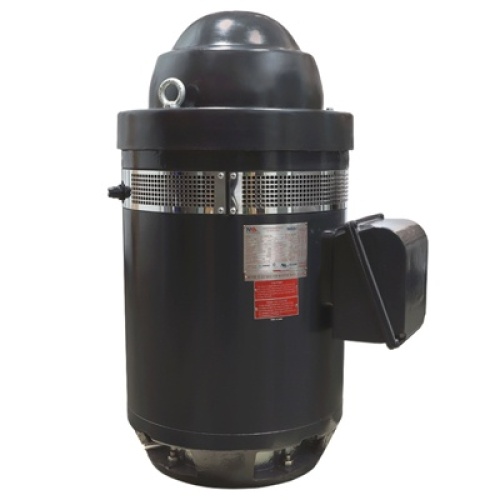

NAE V1-60S4-W36416B Electric Motor Vertical Hollow Shaft, 460 Volt, 3 Phase, 60 HP, 68.3 Amp
Normally In Stock
Code: 217533
NAE V1-60S4-W36416B Electric Motor 60 HP, 1800 RPM, 364TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.188 Coupling
Condition: New
Usually ships Same Day or Next Day$7480.51
Sale Price
$6233.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE V1-60S4-W36416B Electric Motor 60 HP, 1800 RPM, 364TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.188 Coupling
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
60 HP
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Manufacturer
North American Electric Motors
Motor Frame Construction
Cast Iron
Motor Amperage (Full Load)
68.3 Amp
Motor Frame Model
364TP
Motor Enclosure Type
WP1
Features
Service factor: 1.15 @ 60 Hz
NEMA Design B Performance
High/ Extra High Thrust
Oil bath with large reservoir
Light weight hood for easy access lifting provisions
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Stainless steel nameplate and zinc plated hardware, corrosion resistant epoxy paint
Enclosure: WP1-open weather-protected machine type 1
Cast iron/ plate steel frame construction
Space heater
Thermal protected
Oversized angular contact bearing and ball bearing
High thrust (10 HP—250 HP)
Extra high thrust/ double stacked bearing available (100-500 HP)
Non-reverse ratchet (ball type)
