Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 21746

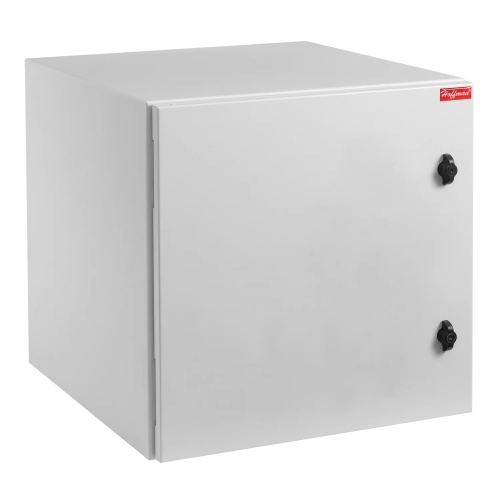

nVent Hoffman PTRS242424G3 PROTEK Network Enclosure with Fan Package
nVent Hoffman PTRS242424G3 PROTEK Network Enclosure. 24.09 x 23.62 x 24.02 (HxWxL) 12 rack units. Light Gray Steel Type 3R enclosure with Fan package and drip shield. Single door hinged and keylocking wing Knob latch including two keys. Panel mount or 19" rack mount front and rear access. Includes one set of tapped 10-32 rack angles. Studs in all wall sections mounting panels. Doors have grounding studs and foam in place gasket to seal door from contanminants. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)$3201.28
Sale Price
$2667.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman PTRS242424G3 PROTEK Networking Cabinet with thermostatically controlled fans for airflow to cool equipment and top drip/solar shield. Excellent for mounting 19" rack equipment and other electronics or mount equipment on backpate. Designed to provide front and rear access to 19" rack mounted equipment. Ideal for applications where wall mounting is necessary. Light textured light gray low gloss enclosure max load rating of 250 lbs.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
Gray
Enclosure Depth
24"
Enclosure Composition
Painted Steel
Rack Units
12
Enclosure Height
24"
Line
Protek
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
24"
Component
Network Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure Type
Protek Network Cabinet With Fan
Manufacturer
Hoffman
Enclosure Lock Type
Keylock
Features
Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
Two thermostatically-controlled, long-life, high-performance fans mounted into top
Perforated, vented base with internal, expanded metal, serviceable filter
All seams are fully welded and ground smooth
Integral top solar/drip shield
Solid-door cabinet provides complete physical and visual protection
Door and body are provided with ground studs to facilitate proper bonding and grounding of the cabinet
One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each cabinet
Additional rack angles in tapped and square-hole versions can be added to the cabinet
Key-locking wing knob provides access control to the cabinet, two keys are included with each cabinet
Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Downloads
No current downloads for this product. Please call us at 888-532-2706 for more information.
