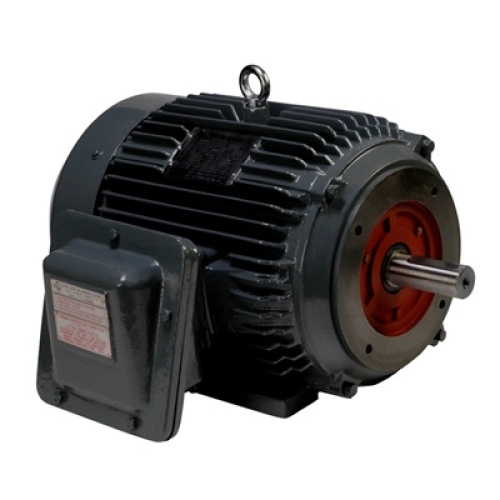

NAE PEXP184TC-2-6 Electric Motor Explosion Proof, 208-230 Volt, 460 Volt, 3 Phase, 2 HP, 6.2 - 5.6 Amp, 2.8 Amp
Normally In Stock
Code: 217418
NAE PEXP184TC-2-6 Electric Motor 2 HP, 1200 RPM, 184TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated, C-Flange with Feet
Condition: New
Usually ships Same Day or Next Day$1243.18
Sale Price
$1035.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE PEXP184TC-2-6 Electric Motor 2 HP, 1200 RPM, 184TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated, C-Flange with Feet
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
2 HP
Motor Frame Model
184TC
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor Voltage
208-230 Volt
Manufacturer
North American Electric Motors
Motor Enclosure Type
TEXP
Motor Frame Construction
Cast Iron
Motor Amperage (Full Load)
6.2 - 5.6 Amp
Motor Amperage (Full Load)
2.8 Amp
Features
Service factor: 1.15 @ 60 Hz
1.0 @ 50 Hz
NEMA Design B Performance
F1/F2 reversible
Dual-drilled feet for mounting flexibility
Lifting provisions
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Stainless steel nameplate and zinc plated hardware, corrosion resistant epoxy paint
IP55 protection
Cast iron frame construction
Sealed bearings
2-year warranty
