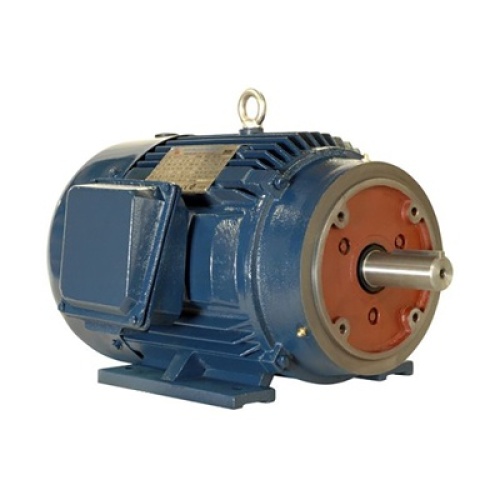

NAE PE405TC-75-6C Electric Motor Crusher Duty, 208-230 Volt, 460 Volt, 3 Phase, 75 HP, 87 Amp
Normally In Stock
Code: 217273
NAE PE405TC-75-6C Electric Motor 75 HP, 1200 RPM, 405T Frame, 208-230/460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet
Condition: New
Usually ships Same Day or Next Day$7848.83
Sale Price
$6540.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE PE405TC-75-6C Crusher Duty Electric Motor used for Crushing and pulverizing equipment; Other industrial machinery requiring extremely high starting torques and breakdown torques; Suitable for use with variable frequency drives> Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; NEMA Design B Performance/ High starting torque; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Heavy duty cast iron housing with corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Regreasable open bearings; 3-year warranty (extended warranty available)
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
75 HP
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Voltage
460 Volt
Motor Voltage
208-230 Volt
Manufacturer
North American Electric Motors
Motor Frame Construction
Heavy Duty Cast Iron
Motor Amperage (Full Load)
87 Amp
Motor Frame Model
405TC
Motor NEMA Design
NEMA Design C
Features
Service factor: 1.15 @ 60 Hz
1.0 @ 50 Hz
NEMA Design B Performance/ High starting torque
F1/F2 reversible
Dual-drilled feet for mounting flexibility
Lifting provision
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Heavy duty cast iron housing with corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware
IP55 protection
Condensation drain with plugs
Regreasable open bearings
3-year warranty (extended warranty available)
