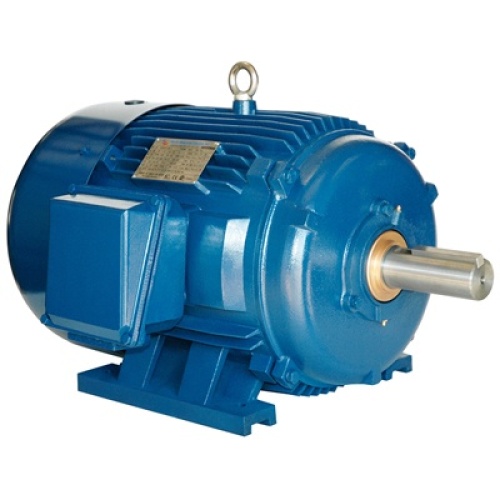

NAE PE324T-20-8C Electric Motor Crusher Duty, 208-230 Volt, 460 Volt, 3 Phase, 20 HP, 61 - 56 Amp, 28 Amp
Normally In Stock
Code: 217246
NAE PE324T-20-8C Electric Motor 20 HP, 900 RPM, 324T Frame, 208-230/460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Duty
Condition: New
Usually ships Same Day or Next Day$3023.34
Sale Price
$2519.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE PE324T-20-8C Crusher Duty Electric Motor used for Crushing and pulverizing equipment; Other industrial machinery requiring extremely high starting torques and breakdown torques; Suitable for use with variable frequency drives> Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provisions. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Heavy duty cast iron housing with corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Regreasable open bearings; 3-year warranty (extended warranty available)
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
20 HP
Motor Frame Model
324T
Motor Frequency
60 Hz
Motor Voltage
460 Volt
Motor RPM's
900 RPM
Motor Voltage
208-230 Volt
Manufacturer
North American Electric Motors
Motor Frame Construction
Heavy Duty Cast Iron
Motor Amperage (Full Load)
28 Amp
Motor NEMA Design
NEMA Design C
Motor Amperage (Full Load)
61 - 56 Amp
Features
Service factor: 1.15 @ 60 Hz
1.0 @ 50 Hz
Suitable for 575V @ 1.0
NEMA Design B Performance/ High starting torgue
F1/F2 reversible
Dual-drilled feet for mounting flexibility
Lifting provisions
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Heavy duty cast iron housing with corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware
IP55 protection
Condensation drain with plugs
Regreasable open bearings
3-year warranty (extended warranty available)
