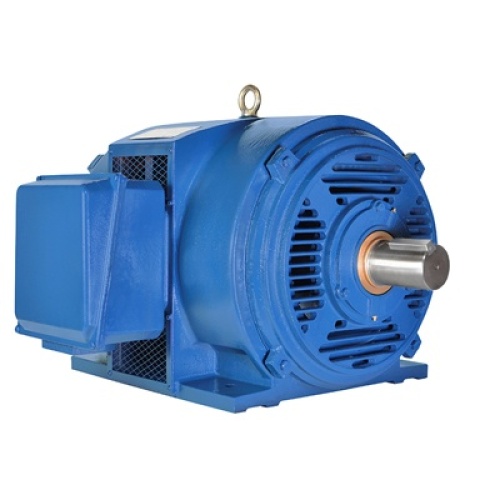

NAE PE447TS-300-2-ODP Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 300 HP, 322 Amp
Normally In Stock
Code: 217080
NAE PE447TS-300-2-ODP Electric Motor 300 HP, 3600 RPM, 447TS Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., ODP, Gen Purp, Cast Iron, Prem Eff, Inverter Duty
Condition: New
Usually ships Same Day or Next Day$12035.27
Sale Price
$10029.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE PE447TS-300-2-ODP General Purpose Heavy Duty Cast Iron Electric Motor used for Pumps; Fans; Blowers; Compressors; Conveyors; Material handling equipment; Other industrial machinery; Damp, dusty or dirty environments; Suitable for use with variable frequency drives> Service factor: 1.25 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provisions. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Heavy duty cast iron housing or rolled steel with corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware; IP23 protection; Condensation drain with plugs. Regreasable open bearings; 3-year warranty (extended warranty available)
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Frame Model
447TS
Motor Horsepower
300 HP
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Manufacturer
North American Electric Motors
Motor Frame Construction
Heavy Duty Cast Iron
Motor Amperage (Full Load)
322 Amp
Motor Enclosure Type
Open Drip-Proof
Features
Service factor: 1.25 @ 60 Hz
1.0 @ 50 Hz
Suitable for 575V @ 1.0
NEMA Design B Performance/ High starting torgue
F1/F2 reversible
Dual-drilled feet for mounting flexibility
Lifting provisions
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Heavy duty cast iron housing or rolled steel with corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware
IP23 protection
Condensation drain with plugs
Regreasable open bearings
3-year warranty (extended warranty available)
