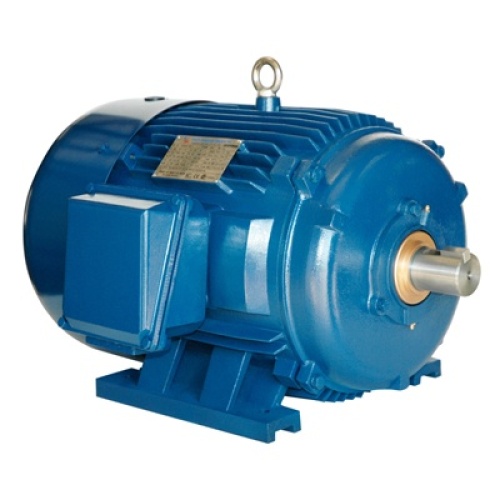

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
NAE PE324TS-40-2-575V Electric Motor General Purpose Heavy Duty Cast Iron, 575 Volt, 3 Phase, 40 HP, 36.4 Amp
Normally In Stock
Code: 216944
NAE PE324TS-40-2-575V Electric Motor 40 HP, 3600 RPM, 324TS Frame, 575V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty
Condition: New
Usually ships Same Day or Next Day$3365.77
Sale Price
$2804.81
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE PE324TS-40-2-575V General Purpose Heavy Duty Cast Iron Electric Motor used for > Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above; insulated bearings on ODE available on 444T frame and above; 3-year warranty (extended warranty available)
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
40 HP
Motor Frame Model
324TS
Motor Voltage
575 Volt
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor RPM's
3600 RPM
Manufacturer
North American Electric Motors
Motor Frame Construction
Heavy Duty Cast Iron
Motor Amperage (Full Load)
36.4 Amp
Features
Service factor: 1.15 @ 60 Hz
1.0 @ 50 Hz
Suitable for 575V @ 1.0
NEMA Design B Performance/ High starting torgue
F1/F2 reversible
Dual-drilled feet for mounting flexibility
Lifting provision
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware
IP55 protection
Condensation drain with plugs
Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above
insulated bearings on ODE available on 444T frame and above
3-year warranty (extended warranty available)
