Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

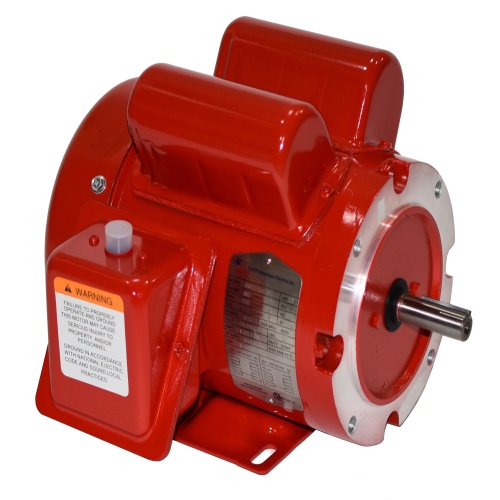

NAE F56CH2S4C-MO Electric Motor General Purpose Rolled Steel, 115 Volt, 208-230 Volt, 1 Phase, 2 HP, 16.17 Amp, 8.94-8.08 Amp
Normally In Stock
Code: 216748
NAE F56CH2S4C-MO Electric Motor 2 HP, 1800 RPM, 56CH Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload
Condition: New
Usually ships Same Day or Next Day$390.70
Sale Price
$325.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE F56CH2S4C-MO General Purpose Rolled Steel Electric Motor used for Pumps; Fans; Conveyors; Poultry equipment; Air compressors; Other farm duty machinery requiring high starting torque> Service factor: 1.15 @ 60 Hz; 1.0 for 10 HP only; Dual-drilled feet for mounting flexibility; High starting torque; Capacitor start/ capacitor run design; Lifting provision on 182T and above. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; Manual overload protection ; IP55 protection; Condensation drain with plugs. Sealed bearings; 2-year warranty
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Insulation Class
Class F Insulation
Motor Horsepower
2 HP
Motor Frequency
60 Hz
Motor RPM's
1800 RPM
Motor Voltage
115 Volt
Motor Voltage
208-230 Volt
Motor Voltage Phases
1 Phase
Motor NEMA Design
NEMA Design L
Motor Frame Construction
Rolled Steel
Manufacturer
North American Electric Motors
Motor Frame Model
56CH
Motor Amperage (Full Load)
16.17 Amp
Motor Amperage (Full Load)
8.94 - 8.08 Amp
Features
Service factor: 1.15 @ 60 Hz
1.0 for 10 HP only
Dual-drilled feet for mounting flexibility
High starting torque
Capacitor start/ capacitor run design
Lifting provision on 182T and above
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware
Manual overload protection
IP55 protection
Condensation drain with plugs
Sealed bearings
2-year warranty
