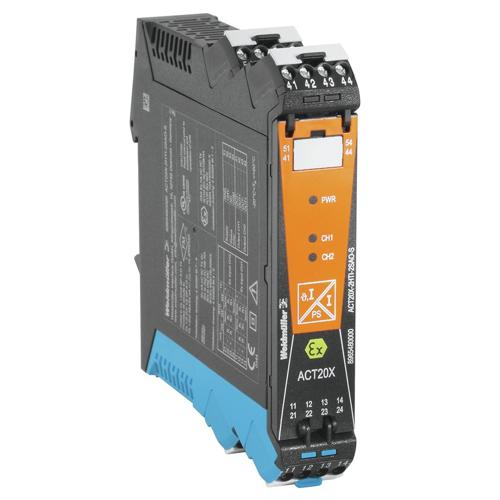

Weidmuller 8965490000 - EX signal isolating converter
Normally In Stock
Code: 215077
Weidmuller 8965490000 - EX signal isolating converter
Condition: New
Usually ships within 4 weeks. Call for ship time.$1004.23
Sale Price
$836.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

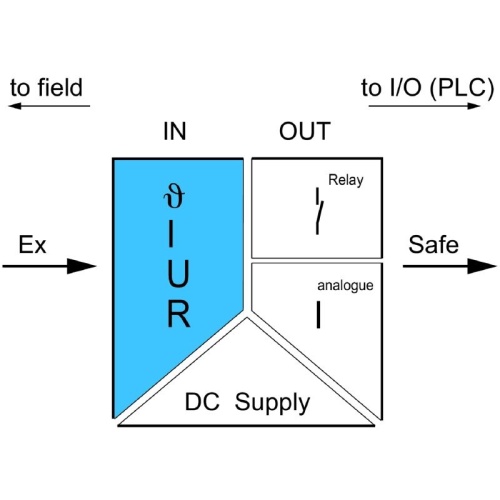

EX signal isolating converter, Ex-output: U, I, R,ϑ, Safe-output: 4-20mA/ relay, 1-channel
Specifications
Features

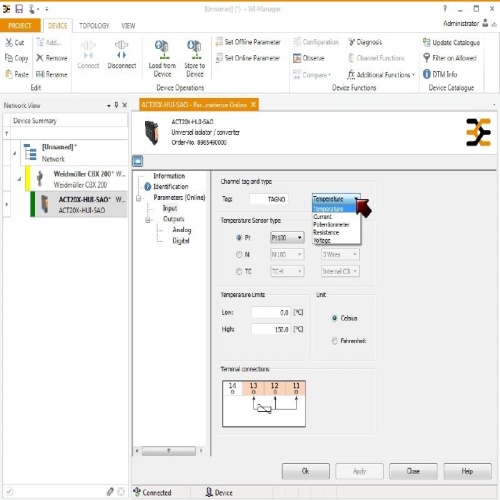

The ACT 20X HUI-SAO-S/ SAO-LP universal measurement and signal isolating converters can be configured individually.

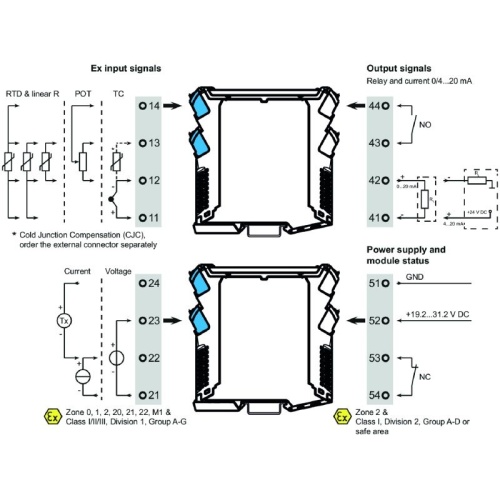

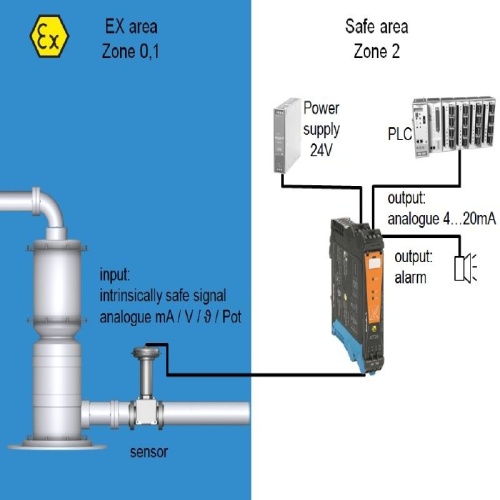

Temperature signals from PT100 sensors and thermocouples as well as analogue DC current and voltage signals can be recorded from Ex zone 0.
On the output side, optional current/voltage (SAO-S) or 4...20 mA current loop signals (SAO-LP / SAO-S) are provided for the safe zone.
The ACT20X-HUI-SAO-S also has a relay output for configuring its switching threshold.
An integrated alarm contact is available on this device for issuing an alert in the event of a malfunction.
This makes troubleshooting easier and also increases system availability.
The power supply of the signal isolating converter is either done using the integrated power supply (SAO-S) or alternatively over the output-side current loop (SAO-LP).
The rail mountable devices are designed with one channel, and are optionally available in widths of 12.5 mm (SAO-LP) or 22.5 mm (SAO-S).
