Binary signal (SL – Symmetrical Load) protection includes the following signals: Switching signals with and without a common reference potential e.g. 5 V – 24V – 60 V Two-conductor systems usually involve a common reference potential of binary sensors, actuators and indicators such as limit switches, buttons, position sensors, photoelectric barriers, contactors, solenoid valves, indicator lamps, etc.

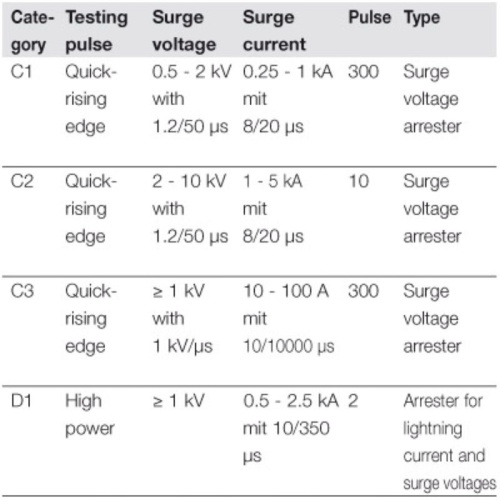

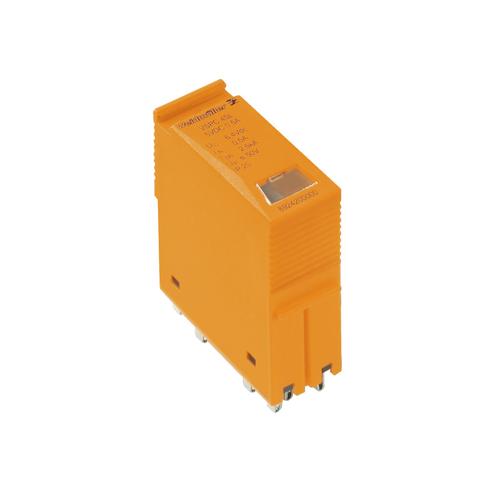

Pluggable arrester, for interruption-free and impedance-neutral plug-in and pull-out Can be tested with the V-TEST testing device Version with floating-earth PE connection used to avoid interference currents resulting from differences in potential For use in compliance with the IEC 62305 and IEC 61643-22 installation standards (D1, C1, C2 and C3) Integrated PE foot safely discharges up to 20 kA (8/20 μs) and 2.5 kA (10/350 μs) to the PE Colour coding of the voltage levels for fast identification on the panel Safety function through coding elements for different voltage levels
