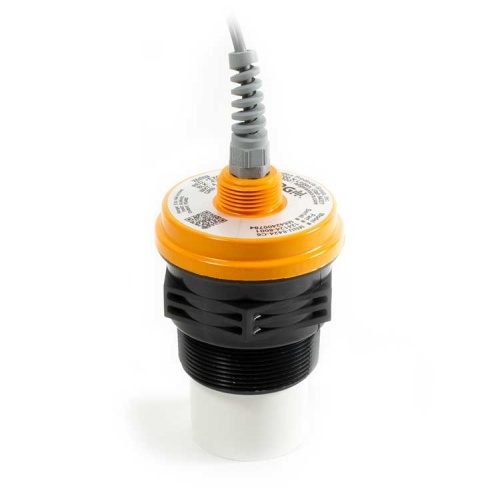

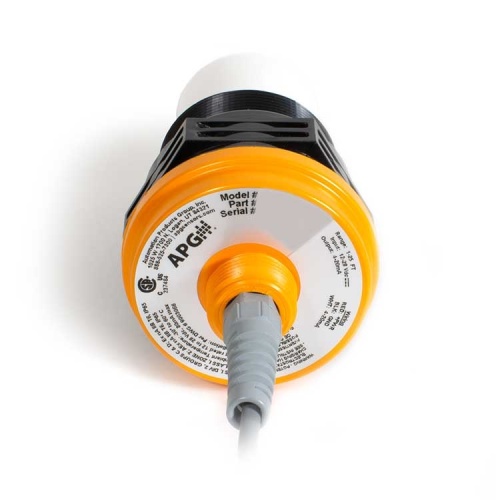

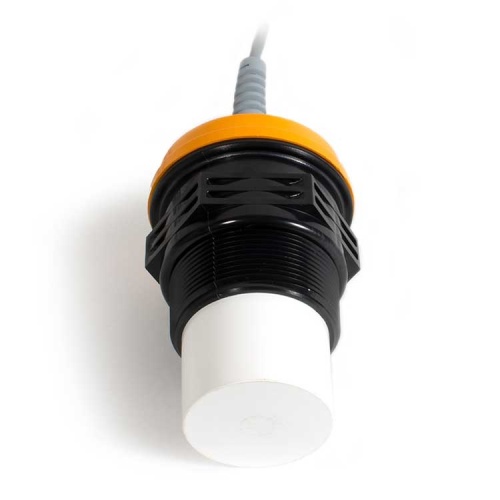

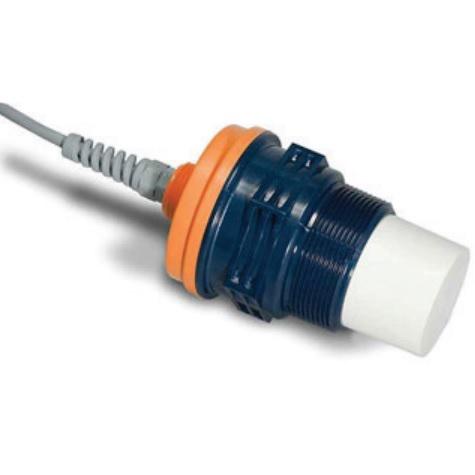

APG IRU-6429-M Ultrasonic Level Transmitter
APG IRU-6429-M Ultrasonic Level Sensor for liquids. Operating range from 1-30' with an accuracy of within .25%. Output of 4-20 mA three wire Isolated with M12 Microconnector and supply voltage of 12-28 VDC. Class 1 Div 2 Non-Incendive IP65 housing protection with 2" NPT mounting and 3/4" NPT male electrical connection. Programing with Interface with RST-3001 or RST-3002 Programmer (Sold Separately). Temperature range of -40-140 F.
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $800.14
Sale Price:
$747.40
APG IRU-6429-M Ultrasonic Level Sensor designed for non-contact method of detecting level, volume, proximity, distance and presence or absence detection. Built in technology compensating for unpredictiable variables like temperature, humidity, and agitators. Works on solids or liquids iwth Internal temperature compensation and autosense software for hassle free setup.
| Specifications | |
| Manufacturer | APG |
| (Instrument-Sensor) Temperature Range | -40 F - 140 F |
| (Instrument-Sensor) IP Protection | IP65 |
| (Instrument-Sensor) Measurement Accuracy | 0.25% of detected range |
| (Instrument-Sensor) Hazardous Location Class | Class 1 Div 2 Non-Incendive |
| (Instrument-Sensor) Mounting | 2" NPT male |
| (Instrument-Sensor) Output Signal Type | 4-20 mA 3 Wire Isolated |
| (Instrument-Sensor) For Use With | RST-3002 Module (Sold Separately) |
| (Instrument-Sensor) Span | 1-30' |
| (Instrument-Sensor) Application | Liquid |
| Component | Ultrasonic Level Transmitter |
