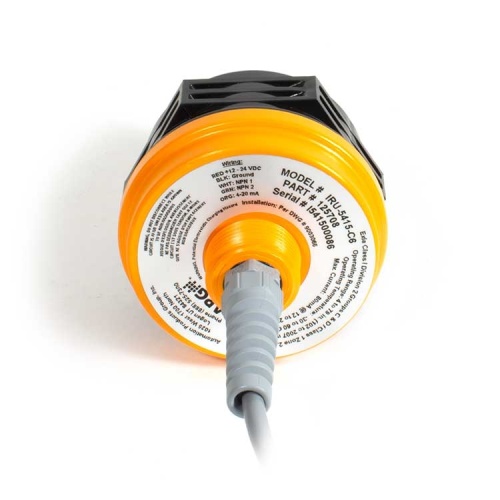

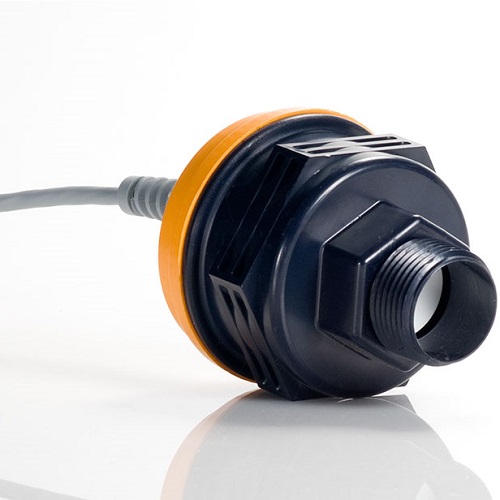

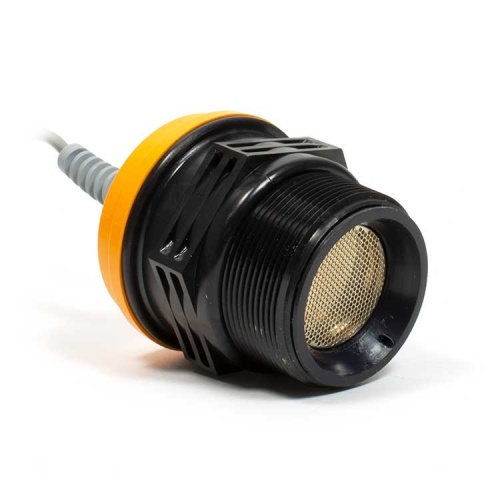

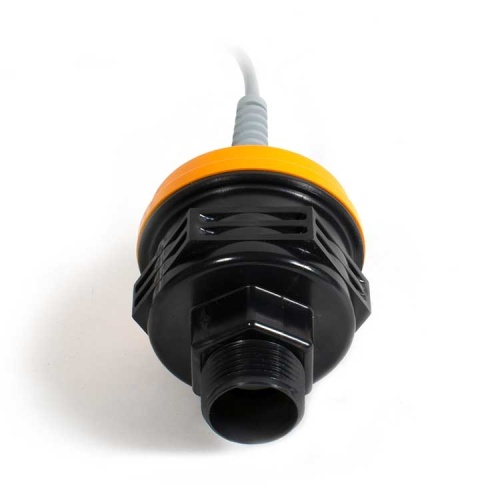

APG IRU-5415-C6 Ultrasonic Level Transmitter
Normally In Stock
Code: 21295
APG IRU-5415-C6 Ultrasonic Level Sensor for liquids. Operating range from 4"-6'7" with an accuracy of within .25%. Output of 4-20 mA three wire Isolated with 2 NPN outputs with 6' pigtail and supply voltage of 12-28 VDC. Class 1 Div 2 Non-Incendive IP65 housing protection with 1" NPT mounting and 3/4" NPT male electrical connection. Programing with Interface with RST-3001 or RST-3002 Programmer (Sold Separately). Temperature range of -40-140 F.
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$927.71
Sale Price
$773.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
APG IRU-5415-C6 Ultrasonic Level Sensor designed for non-contact method of detecting level, volume, proximity, distance and presence or absence detection. Built in technology compensating for unpredictiable variables like temperature, humidity, and agitators. Works on solids or liquids iwth Internal temperature compensation and autosense software for hassle free setup.
Specifications
Manufacturer
APG
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Temperature Range
-40 F - 140 F
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Hazardous Location Class
Class 1 Div 2 Non-Incendive
(Instrument-Sensor) Span
4"-6'7"
(Instrument-Sensor) Mounting
1" NPT Male
(Instrument-Sensor) For Use With
RST-3002 Module (Sold Separately)
(Instrument-Sensor) Output Signal Type
4-20 Ma 3 Wire Isolated With 2 NPN Trip Points
(Instrument-Sensor) Application
Liquid
Component
Ultrasonic Level Transmitter
Features
Range: 4 - 79 in. (102 - 2007 mm) for liquids and solids
AutoSense Software for hassle-free setup
Internal temperature compensation
Works on liquids, solids, and bulk solids
Excitation input for datalogging
Class I Div 2 Non-incendive for 4-20 mA output
IP65 Enclosure rating: dust-tight, protected against water jets
