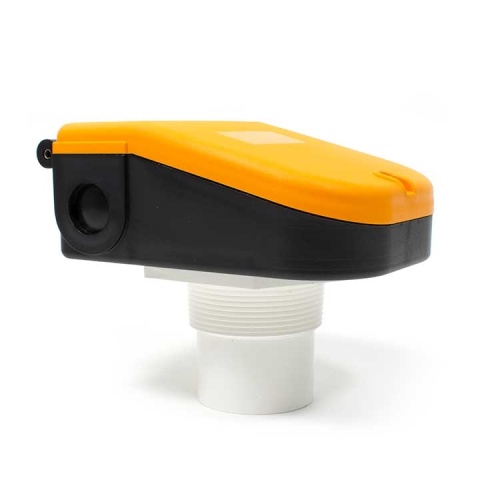

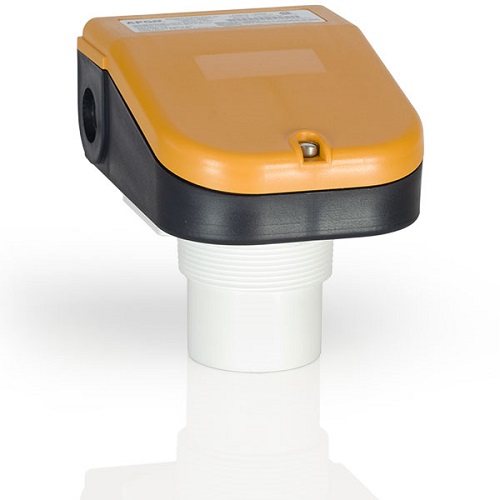

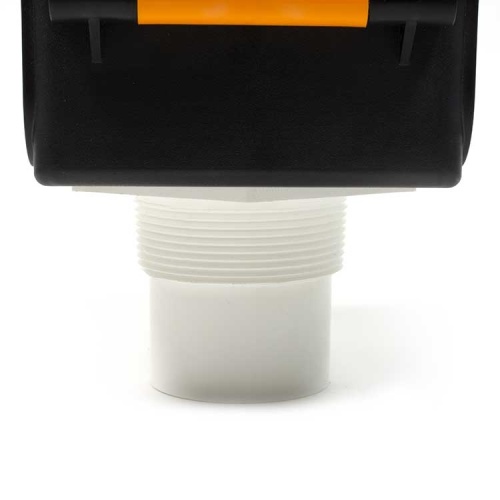

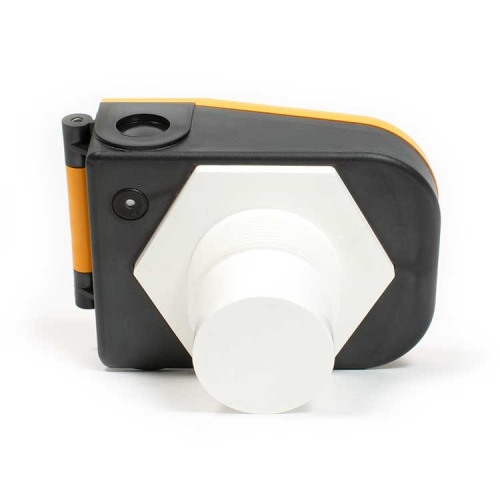

APG LOE-7126 Modbus TCP/IP Ultrasonic Transmitter
Code: 21283
APG LOE-7126 Modbus TCP/IP Ultrasonic Sensor for liquids. Operating range from .5-15' with an accuracy of within .25%. Output of RS-485 Modbus Ethernet TCP/IP and supply voltage of 24 VDC. General Purpose IP65 housing protection with 2" NPT mounting and 3/4" NPT male electrical connection. Programing via the APG website or LAN. Temperature range of -40-140 F.
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
Replacement Products
Description
APG LOE-7126 Modbus TCP/IP Ultrasonic Sensor is designed for remote level mesasurement. Simply plug in your ethernet cable for inexpensive, web-based remote level measurement. They are fully programmable for various applications, giving the user complete control. Programmable response time, RS-485 Modbus communication and LAN embedded webpage.
Specifications
Manufacturer
APG
(Instrument-Sensor) Temperature Range
-40 F - 140 F
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Measurement Accuracy
0.25% Of Detected Range
(Instrument-Sensor) Mounting
2" NPT Male
(Instrument-Sensor) Output Signal Type
RS-485 Modbus TCP-IP
(Instrument-Sensor) For Use With
Modbus Ethernet TCP-IP
(Instrument-Sensor) Application
Liquid
Component
Ultrasonic Level Transmitter
(Instrument-Sensor) Span
0.5-15'
