Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

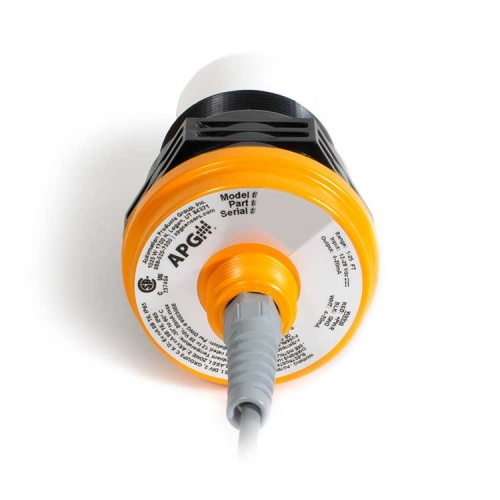

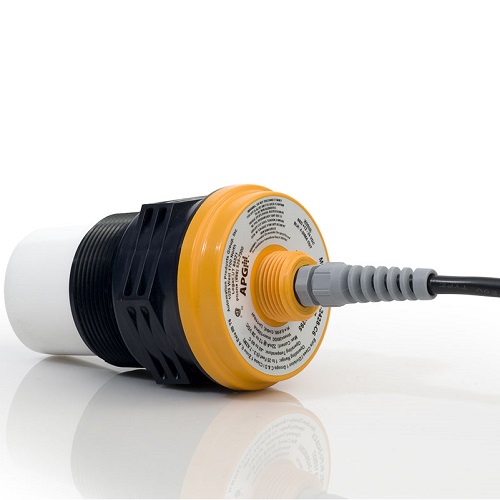

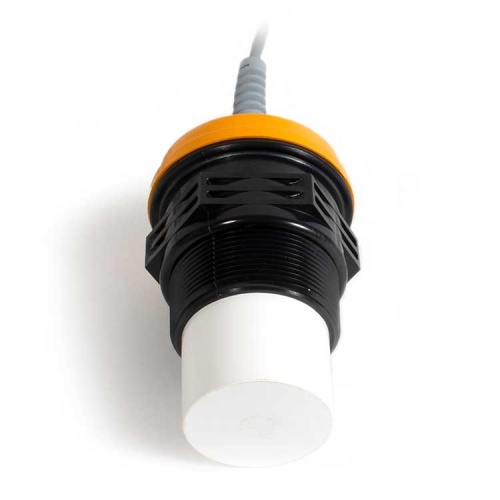

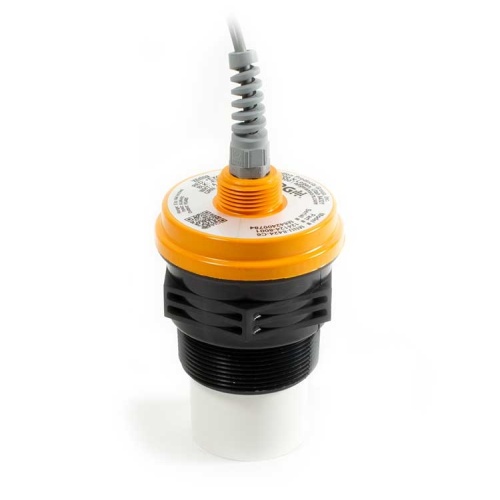

APG LPU-2428-C6 Ultrasonic Level Transmitter
Normally In Stock
Code: 21276
APG LPU-2428-C6 Ultrasonic Level Transmitter for liquids. Operating range from 1-25' with an accuracy of within .25%. Output of 4-20 mA two wire (loop powered) with 6' pigtail and supply voltage of 12-28 VDC. Class 1 Div 1 Intrinsically Safe IP65 housing protection with 2" NPT mounting and 3/4" NPT male electrical connection. Programing with RST-4001 Programming Module (Sold Separately). Temperature range of -40-140 F.
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1220.68
Sale Price
$1017.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
APG LPU-2428-C6 Class 1 Div 1 Intrinsically Safe Ultrasonic Level Transmitter designed for easy set-up with fast wiring and Programing with RST-4001 Programming Module (Sold Separately). Durable housing with high chemical compatiblilty performs well under stress. CSA hazardous location certification. Loop powered for faster and more efficient wiring and easy interface makes this sensor virtually maintenance free.
Specifications
Manufacturer
APG
(Instrument-Sensor) Output Signal Type
4-20 Ma 2 Wire (Loop Powered)
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Hazardous Location Class
Class 1 Div 1 Intrinsically Safe
(Instrument-Sensor) Temperature Range
-40 F - 140 F
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Span
1-25'
(Instrument-Sensor) Mounting
2" NPT Male
(Instrument-Sensor) For Use With
RST-4001 Module (Sold Separately)
(Instrument-Sensor) Application
Liquid
Component
Ultrasonic Level Transmitter
Features
Loop powered 4-20 mA output
Class 1 Division 1, Intrinsically Safe rating
Built-in calculations of current volume, flow, and flow totals
