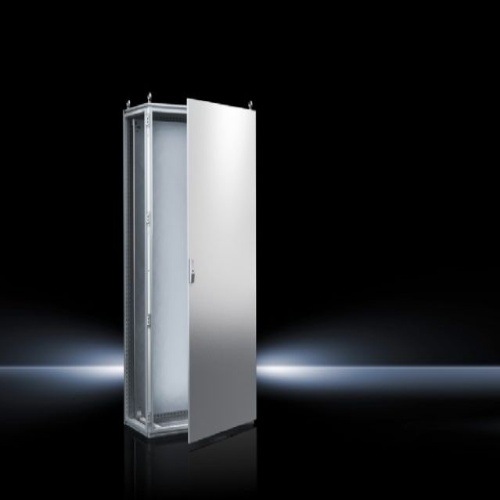

Rittal 8886500 Modular Enclosure Bay 71"H x 32"W x 24"D
Normally In Stock
Code: 21150
Rittal 8886500 Modular Enclosure Bay 71"H x 32"W x 24"D Nema 12 Steel Gray 1 door includes enclosure frame with door(s), roof plate, gland plate, rear panel, mounting plate, 4 eyebolts, and 3mm double-bit lock
Condition: New
Usually ships Same Day or Next DayALL RITTAL ORDERS THAT EXCEED 50 LBS WILL SHIP FREIGHT.
$2938.24
Sale Price
$2448.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Rittal 8886500 Modular Enclosure Bay 71"H x 32"W x 24"D. SEE RELATED PRODUCTS BELOW. You will need 1 Flex-Block base Corner Piece Set, 1 Flex-Block Depth Trim Panels and 1 Flex-Block base Width Trim Panels Set per Enclosure Bay and you will also need 1 Sidwall Set for each complete package of Enclosure Bays ordered. It is recommended to purchase Comfort Handle and Insert Lock for each Enclosure Bay. All items are in the Related Products below.
Specifications
Enclosure Lock Type
Sold Separately
Enclosure Hinge Type
Continuous Hinge
Enclosure Depth
24"
Enclosure Mount Type
Free-Standing
Enclosure Open Sides
Both Sides Open
Enclosure Width
32"
Enclosure Height
71"
Manufacturer
Rittal
Line
TS 8
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Composition
Steel
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Component
Modular Enclosure
Features
Supply Includes: Enclosure frame Door(s) R/h door hinge with single-door enclosures, may be swapped to opposite side Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Gland plates Mounting plate 2 TS punched rails 18 x 38 mm 2 support strips fitted in the enclosure depth
