Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 211095

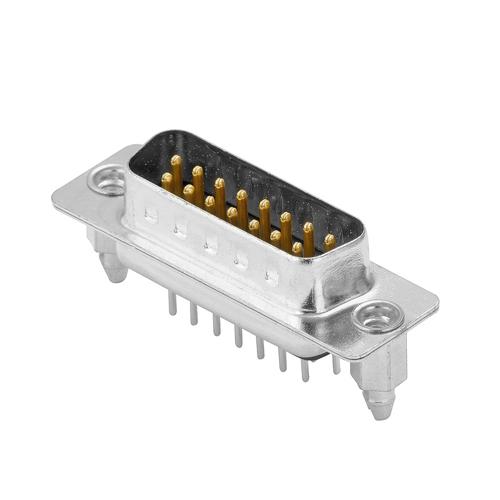

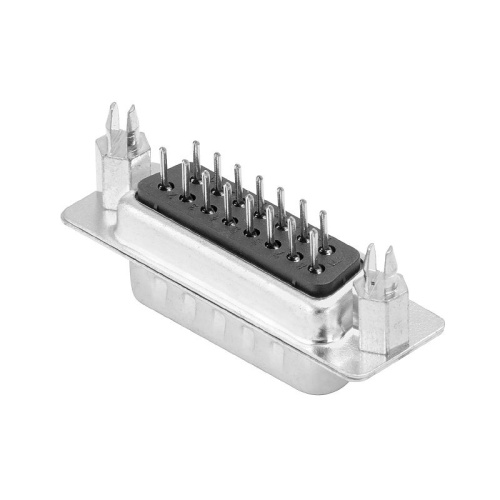

Weidmuller 2707180000 D-Sub Connector - 15 Pole
Normally In Stock
Weidmuller 2707180000 - D-Sub Connector - Black - IP10 - 15 Pole - Copper Alloy - 2.77 mm Pitch (MUST BUY IN PACKS OF 70)
Condition: New
Usually ships within 4 weeks. Call for ship time.$9.13
Sale Price
$7.61
MUST BUY IN PACKS OF 70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 2707180000 - D-SUB connectors are available in various designs to meet different requirements. They come in 90° (horizontal) and 180° (vertical) configurations. Flange designs include drilled holes, UNC 4-40 threaded nuts, and UNC 4-40 threaded bolts. The connectors feature stamped contacts with a rated current of 3 A and are soldered using the THT process. They offer a wide range of design types, including those with snap-on clips. Packaging is done in trays. D-SUB connectors have an extended temperature range of -55°C to +85°C, ensuring optimal performance in various environments. They are designed in accordance with IEC 60807-3 (IEC 807-3) and DIN 41652 standards.
Specifications
Connector Color
Black
Connector Material
Copper Alloy
Manufacturer
Weidmuller
Connector protection
IP10
Component
PCB Data Connector
Sub Component
D-Sub Connector
Number of Poles
15 Pole
Features
The product range encompasses the following designs:
90°, lying (horizontal) and 180°, standing (vertical)
Flange design as drilled hole, UNC 4-40 threaded nut and UNC 4-40 threaded bolt
Stamped contacts (Rated current: 3 A)
THT soldering process
Wide range of different design types, also with snap-on clip
Packed in tray (TY)
Extended temperature range of –55 °C to +85 °C for maximum performance
Design in accordance with IEC 60807-3 (IEC 807-3) and DIN 41652
Downloads
Code: 211095
Weidmuller 2707180000 D-Sub Connector - 15 Pole
$9.13
Sale Price
$7.61
MUST BUY IN PACKS OF 70
