Timing relay for control signal adaptation with additional functions Timing relays are used to coordinate fast switching processes in control systems, among other things.

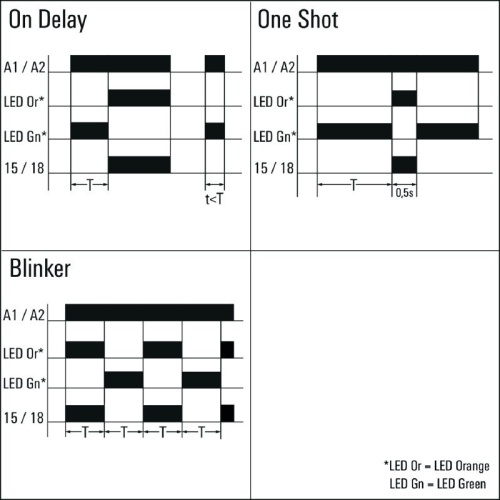

TERMSERIES TIMER timing relays have a on-delay, which allows for the delayed switch-on of machines, the cascaded start-up of system components or the delayed activation of consumers such as pumps or valves.

They also have the One Shot and blinker functions.

TERMSERIES TIMER timing relays in compact 6.4 mm terminal block format are available with either a screw connection or a PUSH IN wire connection.

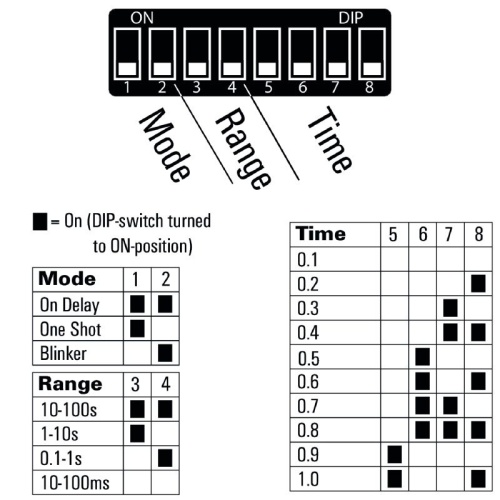

The timing functions and time ranges can be conveniently adjusted via the DIP switches on the side.

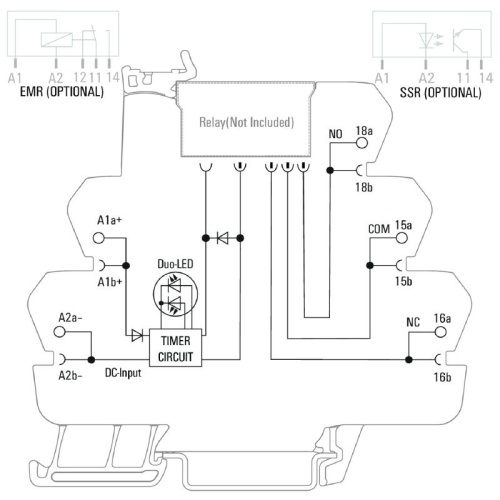

The power supply and the respective switching status can be checked at a glance by means of the clearly visible duo LED on the ejection lever.

International approvals in accordance with EN 61812 mean that they can be used anywhere in the world.

TERMSERIES TIMER is compatible with the wide range of TERMSERIES accessories, thereby ensuring high levels of flexibility and simple integration into existing systems.

Integration of additional timing functions in 6 mm TERMSERIES version Standard-compliant timing relays according to EN 61812 Simple setting of timing functions and time ranges Integrated status LED (duo-LED in the ejection lever) for power supply and switching status
