Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

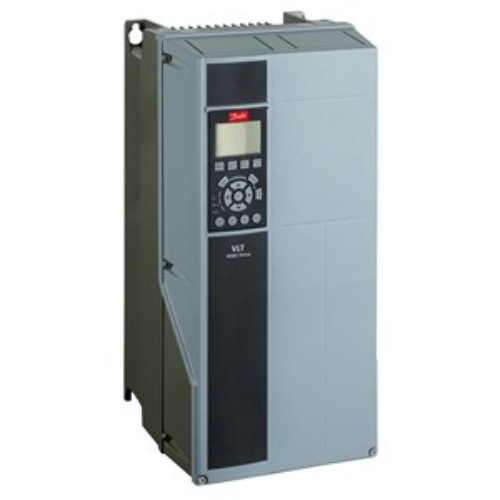

Danfoss 131B8989 VLT Automation VT Drive VFD FC301 460V 15-HP
Normally In Stock
Code: 20834
Danfoss 131B8989 VLT Automation VT Drive FC301 460 VAC Three Phase 15 Hp 21 Amp Industrial Basic Performance VFD Constant Torque. B3 frame with protected IP20 Chasis 16.64" x 6.5" x 9.81" includes Graphical Local Control Panel. Includes 1 Analog input, 1 Analog output, 5 Digital inputs, 1 Digital transistor output, 1 relay output. WE RECCOMEND Line and Load Reactors for all VFD's. Line (Input) Reactors reduce hamonics generated going back into the line and protect the VFD from input power disturbances that can trip and damage drives. *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships in 7 days.$3763.74
Sale Price
$3136.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Danfoss 131B8989 VLT Automation VT Drive FC301 460 VAC Three Phase 15 Hp 21 Amp Industrial Basic Performance Variable Frequency Drive FC301P11KT4E20H2BGXXXXSXXXXAXBXCXXXXDX. FC 301 VFD's are basic performance VVC plus vector-based performance which are open/closed loop capableand exposed heat sink for general industrial applications. Includes standard VLT features like Smart Logic Control, Logic Rule Control, Local Control Panel numerical or graphical, (Macro) Personal Menu, Change made restore previous setting, Password Protection, Analog input 0 to 10 V, Analog output resolution 12 bit, PC connection RS485 adn USB, Default motor data, Process PID Controller, Precise Start/Stop, 8 Preset References, Digipotmeter, Ramp functions: linear and S ramps, Overvoltage Control, Variable switching frequency 1-16 kHz, Voltage Vector control, External 24 V backup option, Motion Control Options: MCO 350/351.
Specifications
Drive Type
VLT
VFD Control Panel
Numerical Or Graphical Control Panel
VFD Torque
Constant Torque
VFD Application
Compressor
VFD Application
Conveyor
VFD Application
Positive Displacement Pump
VFD Application
Mixer
VFD Application
Hoist
VFD Application
Traction Drive
VFD Horsepower Output
15 HP
VFD Amperage Output
21 Amp
VFD Frame Type
B3
Manufacturer
Danfoss
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
Chassis Protected IP20
VFD Line
FC 301
Features
VLT® AutomationDrive FC-301
(P11K) 11 KW / 15 HP
Three phase 380 - 480 VAC IP21 / Type 1 Backplate
RFI Filter
No brake chopper
Numerical Loc. Cont. Panel
Not coated PCB No Mains Option
Latest release std. SW.
Frame: B1
DeviceNet MCA 104 No B Option
No C1 option No D option
Other options according to Model code
The VLT® AutomationDrive represents a single drive concept that controlsthe entire range of operations from ordinary to servo like applicationson any machine or production line
Downloads
Danfoss 131B8989 Brochure.pdfDanfoss 131B8989 CAD Drawing.zipDanfoss 131B8989 Design Guide.pdfDanfoss 131B8989 Installation Guide.pdfDanfoss 131B8989 Instruction Manual.pdfDanfoss 131B8989 Programming Guide.pdfDanfoss 131B8989 Selection Guide.pdfDanfoss 131B8989 Spec Sheet.pdfDanfoss 131B8989 User Manual.pdfInformational Sheet.pdf
