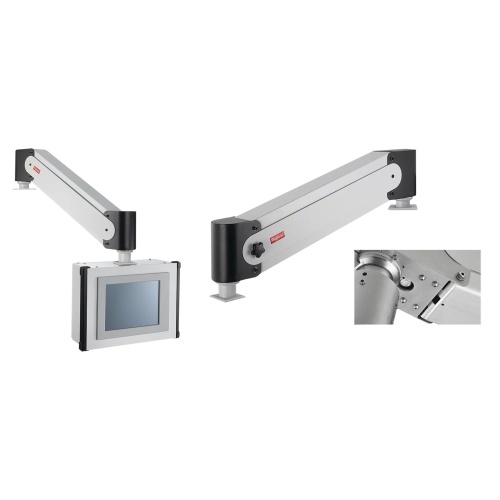

Hoffman VHD36 SYSPEND VHD 36" Motion Arm Pendant Arm

Normally In Stock! Order now!

Condition: New

Usually ships Same Day or Next Day

Price: $5437.90

Sale Price: $5271.21

Hoffman VHD36 SYSPEND VHD 36" Motion Arm Pendant Arm

Specifications
Pendant Arm Component Mounting	Arm to Tube
Pendant Arm Component NEMA Rating	Type 4
Pendant Arm Component Composition	Steel
Pendant Arm Component NEMA Rating	Type 12
Component	Arm System
Line	SYSPEND VHD
Manufacturer	Hoffman
Pendant Arm Component Rotation	330 Degrees
Pendant Arm Component Load Rating	25-75 lbs

Tension adjustment at front of the arm provides additional fine-tuning of lifting force
Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
Angle of gas springs is adjustable (not the pressure), allows lifting force to be increased or decreased at any time for changes in load
Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
36-in. arm supports loads of 25-75 lb. with 20-in. of vertical height adjustment
26-in. arm supports loads of 45-125 lb. with 13-in. of vertical height adjustment
1.3-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
Optional floorpost available
Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)
Enclosure and arm can be swiveled 330 degrees with swivel stops available in 30-degree increments
Gasketed mounting surfaces at both ends of arm maintain seal integrity
