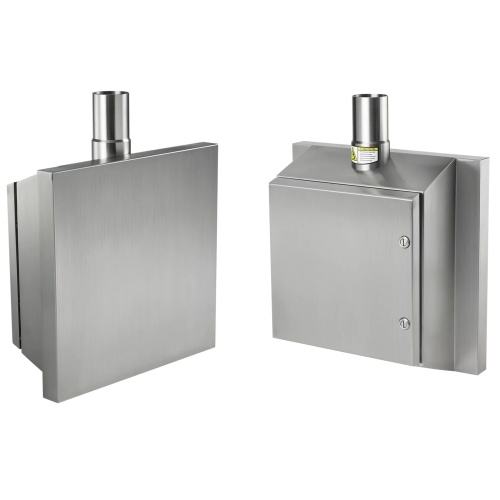

nVent Hoffman S505015SS SYSPEND Sanitary HMI Enclosure
Normally In Stock
Code: 20711
nVent Hoffman S505015SS SYSPEND Sanitary HMI Enclosure Type 4X Stainless Steel 19.68" H x 19.68" W x 6" D (500 x 500 x 150 mm) with shielded hinges, quarter-turn latches and integrated side handles for repositioning. For process control equipment in sanitary washdown environments. Ideal for high pressure and high temperature washdown areas. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)$2727.00
Sale Price
$2272.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman S505015SS Type 4X Stainless Steel SYSPEND Sanitary HMI Enclosure 19.68" H x 19.68" W x 6" D is made of 10 gauge type 304 stainless steel. 20 degree sloped top for water runoff and cleaning. Can be used for pedestal or pendant arm mounting. Suspension arm adapter provided with enclosure used to attach SYSPEND Sanitary adn VHDS motion arm. One piece closed cell silicone gasket for water tight seal. Harware includes parts to attach suport plate and adapter, grounding hardware, internal support plate and suspension arm adapter.
Specifications
Line
SYSPEND
HMI Environment Rating
Outdoor-Indoor
HMI Door Type
Solid
HMI Width
20.0"
HMI Depth
6.0"
HMI Height
20.0"
HMI Composition
Stainless Steel
HMI Mount Type
Pendant/Pedestal Mount
Component
HMI Enclosure
HMI NEMA Rating
NEMA Type 4
HMI NEMA Rating
NEMA Type 12
HMI NEMA Rating
NEMA Type 4X
HMI Number of Doors
1 Door
Manufacturer
Hoffman
Features
Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
Fully concealed silicone gasket area provides complete protection in washdown environments
20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
Enclosure can be flipped for either pendant or pedestal mounting
Integrated side handles allow for easy repositioning of enclosure
Enclosure provides modern, flat-screen monitor-style aesthetics
Hinges are shielded by door
H2Omit Vent Drain can be installed on the flat area to provide means of removing condensed moisture from the enclosure
Internal support plate provides extra rigidity for suspension mounting
Suspension arm adapter can be installed backwards to provide 40-degree tilt for pedestal applications
Suspension arm adapter included to attach to Syspend Sanitary Suspension System and Syspend VHDS-Motion Arm
Seams continuously welded and ground smooth
Bonding provision on door, grounding stud on body
Panel studs on door fit optional NEMA-style panels
Door secured with two stainless steel quarter-turn latches with flush slotted insert
Downloads
Hoffman S505015SS 2D DXF CAD.zipHoffman S505015SS 3D STEP CAD.zipHoffman S505015SS CSA Certification.pdfHoffman S505015SS Declaration of Compliance.pdfHoffman S505015SS Dimension Drawing.gifHoffman S505015SS EU Certification.pdfHoffman S505015SS Instruction Manual.pdfHoffman S505015SS Spec Sheet.pdfHoffman S505015SS UL Certification.pdf
