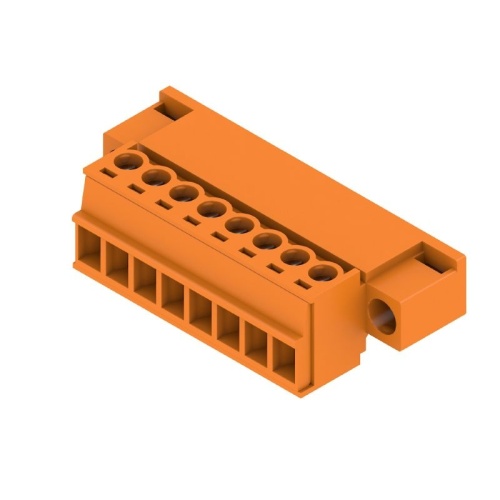

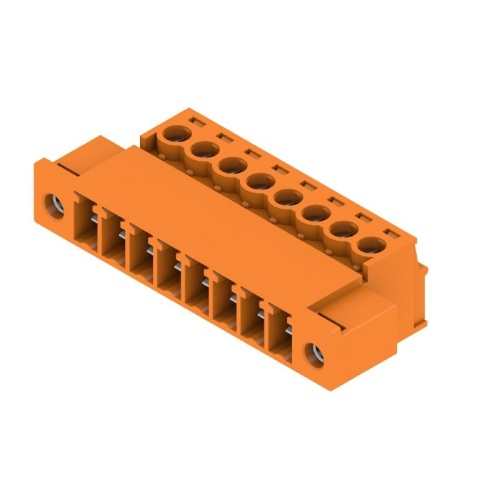

Weidmuller 1970980000 Male Plug - 320 Volt - 8 Pole
Normally In Stock
Code: 205618
Weidmuller 1970980000 - Male Plug - Orange - 320 Volt - 8 Pole - Copper Alloy - 3.81 mm Pitch (MUST BUY IN PACKS OF 50)
Condition: New
Usually ships within 4 weeks. Call for ship time.$10.19
Sale Price
$8.49
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 1970980000 - Weidmuller's BC/SC 3.81 series offers peak performance and sets new standards in the market for connectors with a 3.81mm (0.150 inch) pitch. These connectors have a high current-carrying capacity of 17.5 A at temperatures up to 65°C, surpassing similar products in the market. With a comprehensive range of products, they cater to a wide range of applications. The SCZ pin plug and BCL socket block enable inverted touch-safe outlets, board-to-board connections, and wire-to-wire couplings. Additionally, Weidmuller's innovative PUSH-IN connection system allows for a low component height, increasing component density. Choose Weidmuller's BC/SC 3.81 series for exceptional performance, versatility, and component density in connector solutions.
Specifications
Connector Color
Orange
Connector Material
Copper Alloy
Component
PCB Connector
Manufacturer
Weidmuller
Connection Type
Clamping Yoke Connection
Sub Component
Male Plug
Connector Voltage
320 Volt
Number of Poles
8 Pole
Features
The inverted SCZ pin plug with clamping-yoke screw connection is designed for straight wire connections in 3.81-mm pitch.
It can be used in two ways: for wire-to-wire connections together with the BCZ as a mating plug for the touch-safe BCL socket block on the PCB.
The SCZ is available in four different versions: Without flange ("G", closed) With standard flange ("F", with socket nut) With inverted flange ("FI", with screw) and with Weidmüller's patented release latch for a tool-free, no-strain disconnect The SCZ provides space for labelling and can be coded.
