Code: 205603
Weidmuller 1970720000 - PCB plug-in connector
Normally In Stock
Weidmuller 1970720000 - PCB plug-in connector
Condition: New
Usually ships within 4 weeks. Call for ship time.$5.22
Sale Price
$4.35
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

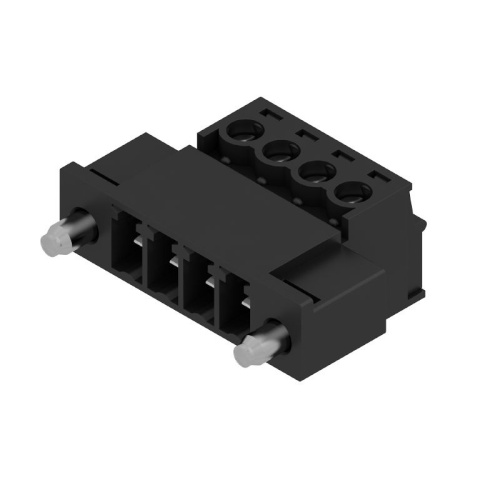

PCB plug-in connector, male plug, 3.81 mm, Number of poles: 4, 180°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box
Specifications
Connector Color
Black
Connector Amperage
10 Amp
Manufacturer
Weidmuller
Connector Voltage
300 Volt
Component
PCB Plug-In Connector
Connection Type
Field Connection
Features
The inverted SCZ pin plug with clamping-yoke screw connection is designed for straight wire connections in 3.81-mm pitch.
It can be used in two ways: for wire-to-wire connections together with the BCZ as a mating plug for the touch-safe BCL socket block on the PCB.
The SCZ is available in four different versions: Without flange ("G", closed) With standard flange ("F", with socket nut) With inverted flange ("FI", with screw) and with Weidmüller's patented release latch for a tool-free, no-strain disconnect The SCZ provides space for labelling and can be coded.
Code: 205603
Weidmuller 1970720000 - PCB plug-in connector
$5.22
Sale Price
$4.35
MUST BUY IN PACKS OF 50
