Code: 20500

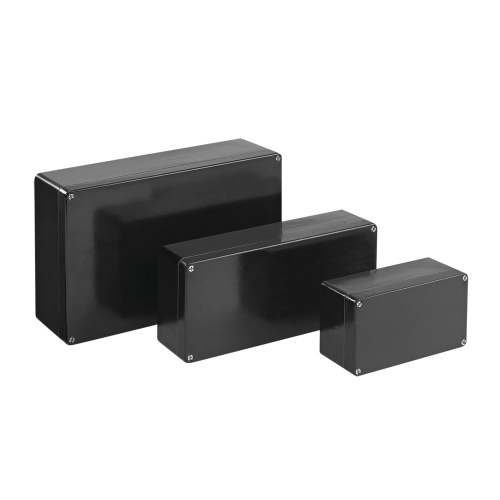

nVent Hoffman EXE1607555 Hazardous Location Enclosure Fiberglass
nVent Hoffman EXE1607555 ZONEX Enclosure 6" H x 3" W x 2" D, Nema 4x Non-Metallic Fiberglass, Stainless Steel Screws on cover with no hinges. Optional Panel. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
*NON-CANCELLABLE, NON-RETURNABLE*
$196.99
Sale Price
$164.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman EXE1607555 ZONEX Non-Metallic Enclosure. This convenient nVent Hoffman Fiberglass ZONEX enclosure is certified to meet ATEX Directive 94/9/EC as well as IECEx standards for increased safety in housing electrical components in Zone 1 and Zone 2 applications. Reusable durable internal M4 or M6 stainless steel inserts for Din and Panel mounting. Optional panels sold seperately.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Depth
2"
Enclosure Composition
Fiberglass
Enclosure Hazardous Classification
ATEX Directive 94-9-EC Zone 2
Enclosure Hazardous Classification
ATEX Directive 94-9-EC Zone 1
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
3"
Line
Zonex
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Height
6"
Enclosure Latch Type
Screw
Component
Hazardous Location Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Covered mounting screw provisions outside of gasketed area, sized M4 (#8) or M6 (¼-in.)
Retained, continuous, high-temperature silicon gasket within a labyrinth seal between cover and body
Durable and reusable, internal M4 or M6 stainless steel inserts for DIN- and Panel-mounting
Mounting location dimensions are molded into the back side of the enclosure
Cover includes recessed, retained, combination head (Straight blade, Phillips and Torx drive) M4 or M6 stainless steel Type 316 screws
Compression-molded, high-impact strength, polyester body and cover
Panel mounting screws included, M4 or M6
Optional panels are pre-plated steel, 1.5mm (16 ga.) thick, or 2mm composite
Increased Safety: Ex e applications
High-impact strength as well as high temperature-rated
Compression-molded fiberglass with added agents to address static charge build-up
