Code: 204959

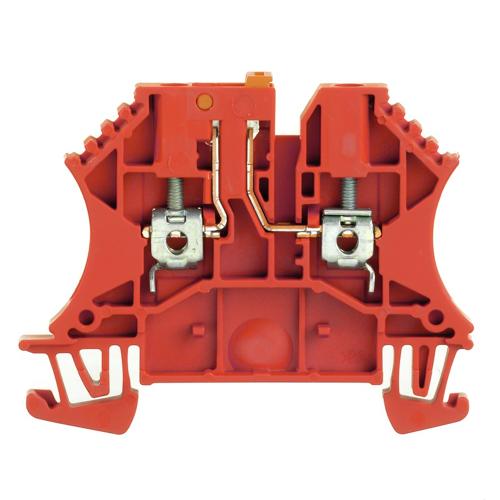

Weidmuller 1950680000 - Test-disconnect terminal
Normally In Stock
Weidmuller 1950680000 - Test-disconnect terminal
Condition: New
Usually ships within 4 weeks. Call for ship time.$6.07
Sale Price
$5.06
MUST BUY IN PACKS OF 100
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Test-disconnect terminal, Screw connection, red, 2.5 mm², 24 A, 500 V, Number of connections: 2, Number of levels: 1
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Connection Method
Screw Connection
Terminal Block Component Color
Red
Terminal Block Amperage
24 Amp
Terminal Block Width
5.1 mm
Manufacturer
Weidmuller
Component
Test-Disconnect Terminal
Features
In some applications it makes sense to add a test point or a disconnect element to the feed through terminal for testing and safety purposes.
With test disconnect terminals you measure electric circuits in the absence of voltage.
While the disconnecting points clearance and creepage distance is not assessed in dimensional terms, the specified rated impulse voltage strength must be proven.
Downloads
Engineering Data - CAD data -- Design IN construction drawings 5.0.zipEngineering Data - CAD data -- Design IN PCB layout 5.0.zipEngineering Data - CAD data -- PCB_position_50880_LP-POSITION_12MM.pdfEngineering Data - CAD data -- Pin_header_pin_length_CH20M_A_OV_PCB-SHL_70315.pdfEngineering Data - CAD data -- STEP.stpUser Documentation - Designation key Type key.pdfUser Documentation - MAN IE GUIDE DE.pdfUser Documentation - MAN IE GUIDE EN.pdfUser Documentation - NTI WTR 2.5.pdfUser Documentation - StorageConditionsTerminalBlocks.pdfUser Documentation - Through-Hole-Reflow Design Anwendungsempfehlung.pdfUser Documentation - Through-Hole-Reflow design recommendation for use.pdf
