Code: 20494

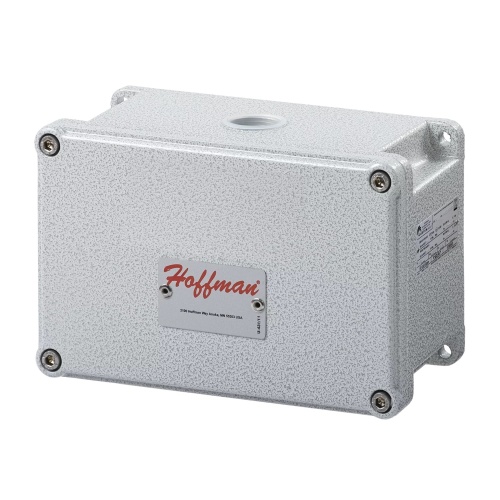

nVent Hoffman SA301410 ZONEX SA Hazardous Location Enclosure
nVent Hoffman SA301410 ZONEX SA Intrinsically Safe Enclosure 12" H x 6" W x 4.33" D, IP66 rating Epoxy coating RAL 7035 or 5015 coating, Low copper aluminum alloy and stainless steel bolts and screws on cover with no hinges. Includes internal mounting panel. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$610.22
Sale Price
$508.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman SA301410 ZONEX SA Intrinsically Safe Enclosure 12" H x 6" W x 4.33" D. This convenient nVent Hoffman ZONEX SA enclosure is certified to meet ATEX Directive 94/9/EC as well as IECEx standards for increased safety or intrinsically safe enclosures applicable for Zone 1, 2, 21 or 22. With a IP66 rating Epoxy coating RAL 7035 or 5015 coating, enclosed components will be kept safe and secure. High temperature-resistant silicone gasket, internal mounting panel and fixed mounting holes. Drilling can be done on body and cover by nVent Hoffman according to customers specifications.
Specifications
Enclosure Composition
Aluminum
Enclosure Hazardous Classification
ATEX Directive 94-9-EC Zone 2
Enclosure Hazardous Classification
ATEX Directive 94-9-EC Zone 1
Enclosure Hazardous Classification
ATEX Directive 94-9-EC Zone 21
Enclosure Hazardous Classification
ATEX Directive 94-9-EC Zone 22
Enclosure Depth
4.33"
Enclosure Width
6"
Enclosure Height
12"
Line
Zonex
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Latch Type
Screw
Component
Hazardous Location Enclosure
Enclosure Number of Doors
1 Door
Manufacturer
Hoffman
Features
Internal mounting panel included
High temperature-resistant silicone gasket provides IP66 rating
Fixed mounting holes for easy installation
Body and cover can be drilled according to customers' specifications
Screw cover configuration for easy access
Low copper aluminum alloy and stainless steel bolts and screws for corrosion resistance
Downloads
Hoffman SA301410 2D DXF CAD.zipHoffman SA301410 3D STEP CAD.zipHoffman SA301410 Declaration of Compliance.pdfHoffman SA301410 Dimension Drawing.gifHoffman SA301410 Product Certification - SA - ATEX Command Control Signalling Units.pdfHoffman SA301410 Product Certification - SA - ATEX Terminal.pdfHoffman SA301410 Product Certification - SA - IEC Command Control Signalling Units.pdfHoffman SA301410 Product Certification - SA - IEC Terminal.pdfHoffman SA301410 Spec Sheet.pdf
