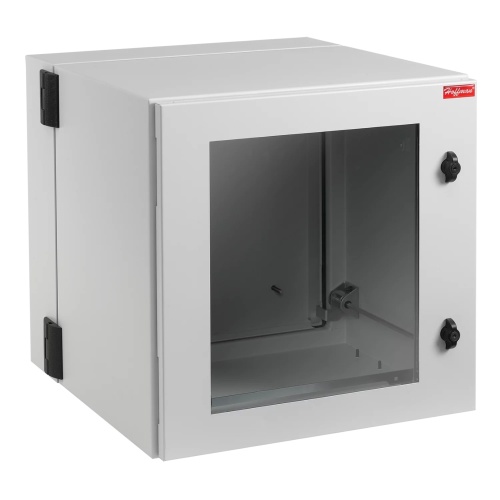

nVent Hoffman PTHW362436G2 37.0"x24.0"x37.0" AccessPlus ProTek Double-Hinged Network Cabinet
Normally In Stock
Code: 20468
nVent Hoffman PTHW362436G2 37.0"x24.0"x37.0" Wall Mount AccessPlus ProTek Double-Hinged Network Cabinet (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)$3931.08
Sale Price
$3275.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman PTHW362436G2 37.0"x24.0"x37.0" AccessPlus ProTek Double-Hinged Network Cabinet ProTek Double-Hinged cabinets are an excellent, off-the-shelf choice for mounting 19-in. rack, panel-mounted devices or other electronic equipment. The cabinets are designed to provide both front and rear access to 19-in. rack-mounted equipment. They provide protection against water, dirt, corrosive agents and other contaminants.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
Gray
Enclosure Door Type
Window
Enclosure Lock Type
Keylocking
Enclosure Composition
Painted Steel
Rack Units
19
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
37"
Line
Protek
Enclosure Depth
37"
Enclosure Mount Type
Wall Mount
Enclosure Width
24"
Component
Network Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure Type
Protek Double-Hinged Cabinet
Manufacturer
Hoffman
Features
Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
All seams are fully welded and ground smooth
Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
Solid door provides complete physical and visual protection
Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet, two keys are included with each cabinet
Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet
One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet, additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
Stainless steel cabinet is provided with a quarter-turn slotted latch
Downloads
Hoffman PTHW362436G2 2D DXF CAD.zipHoffman PTHW362436G2 3D STEP CAD.zipHoffman PTHW362436G2 Declaration of Compliance.pdfHoffman PTHW362436G2 Dimension Drawing.gifHoffman PTHW362436G2 EU Declaration of Conformity.pdfHoffman PTHW362436G2 Instruction Manual.pdfHoffman PTHW362436G2 Spec Sheet.pdfHoffman PTHW362436G2 UL Certification.pdf
