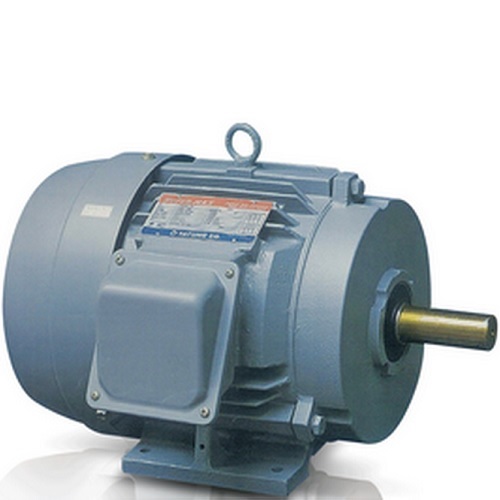

Tatung WH3P46FFAC Electric Motor 3/4 HP 230V 3 Phase
Normally In Stock
Code: 20198
Tatung WH3P46FFAC Super-Max 3/4 HP Electric Motor. 3 Phase 230/460 Volt, 60 Hz, Cast Iron Frame Totally Enclosed Fan Cooled, 1200 RPM, Inverter Duty, Continuous Duty, 2.6 amps(230VF/L Amps) Class F Insulation, Nema Design B. Tatung Frame 143T.
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$497.03
Sale Price
$414.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Tatung WH3P46FFAC Super-Max 3/4 HP Electric Motor. 3 Phase 230/460 Volt, 60 Hz, Cast Iron Frame Totally Enclosed Fan Cooled, 1200 RPM, Inverter Duty, Continuous Duty, 2.6 amps(230VF/L Amps) Class F Insulation, Nema Design B. Tatung Frame 143T.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
0.75 HP
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Manufacturer
Tatung Motors
Motor Amperage (Full Load)
2.6 Amp
Motor Frame Construction
Cast Iron
Features
NEMA premium efficiency, frames: 143T - N5808.
Cast iron frame, 3 phase, 60Hz, 230/460 volt, 1.15 S.F., inverter duty.
Class F insulation, NEMA design B, continuous duty, 40 degree C ambient.
