Hoffman PTRS242424XA 25.0"x24.0"x25.0" ProTek Single-Door Network Cabinet
Hoffman PTRS242424XA 25.0"x24.0"x25.0" Wall Mount ProTek Single-Door Network Cabinet (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $10864.10
Sale Price:
$6881.99
Hoffman PTRS242424XA 25.0"x24.0"x25.0" ProTek Single-Door Network Cabinet
| Specifications | |
| Enclosure Environment Rating | Outdoor-Indoor |
| Enclosure Latch Type | Quarter Turn |
| Enclosure Interior Color | Gray |
| Enclosure Door Type | Window |
| Enclosure Lock Type | Keylocking |
| Enclosure Depth | 25" |
| Enclosure Composition | Painted Steel |
| Rack Units | 12 |
| Enclosure NEMA Rating | NEMA Type 4 |
| Manufacturer | Hoffman |
| Line | ProTek |
| Enclosure Height | 25" |
| Enclosure Mount Type | Wall Mount |
| Enclosure Width | 24" |
| Component | Network Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
| Enclosure Type | ProTek Network Cabinet |
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- All seams are fully welded and ground smooth
- Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Key-locking wing knob is included on painted steel offering, providing access control to the cabinet, two keys are included with each cabinet
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- Solid-door cabinet provides complete physical and visual protection
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet, additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
Customer Reviews
0.0
All Reviews
Hoffman PTRS242424XA 2D DXF CAD.zip
Hoffman PTRS242424XA 3D STEP CAD.zip
Hoffman PTRS242424XA CAD Drawing.zip
Hoffman PTRS242424XA Declaration of Compliance.pdf

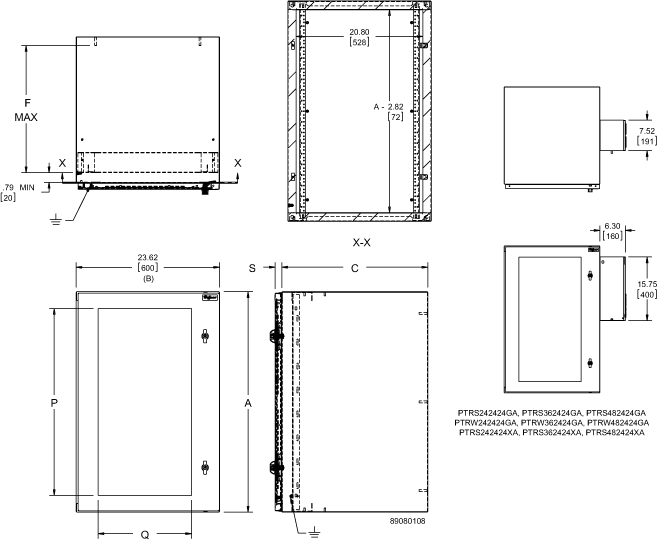

Hoffman PTRS242424XA Dimension Drawing.gif
Hoffman PTRS242424XA EU Certification.pdf
Hoffman PTRS242424XA Instruction Manual.pdf
Hoffman PTRS242424XA Instructions.pdf
Hoffman PTRS242424XA Spec Sheet.pdf
Hoffman PTRS242424XA UL Certification.pdf
