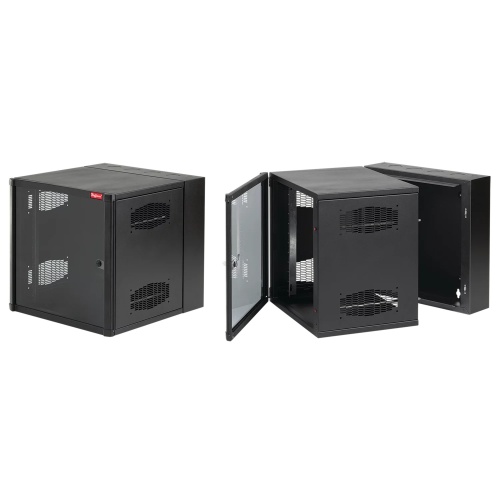

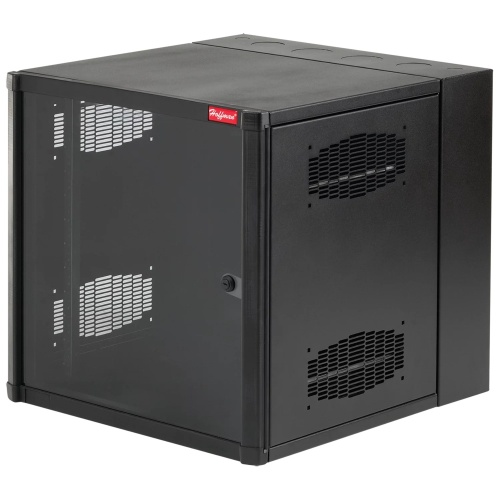

nVent Hoffman EWMW482430 49.0"x24.0"x31.0" AccessPlus Double-Hinge, Type 1 Network Cabinet
Normally In Stock
Code: 19883
nVent Hoffman EWMW482430 49.0"x24.0"x31.0" Wall Mount AccessPlus Double-Hinge, Type 1 Network Cabinet (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)$1805.40
Sale Price
$1504.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman EWMW482430 49.0"x24.0"x31.0" AccessPlus Double-Hinge, Type 1 Network Cabinet AccessPlus Cabinets provide security, equipment access, cooling and support for network and other 19-in. rack-mount equipment. The cabinet has three components: front door, center section and wall section.
Specifications
Enclosure knockouts
Includes Knockouts
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Door Type
Window
Enclosure Lock Type
Keylocking
Enclosure Interior Color
Black
Rack Units
26
Load Rating
350 Lbs.
Line
ACCESSPLUS
Enclosure Height
49"
Enclosure Depth
31"
Enclosure Environment Rating
Indoor
Enclosure Mount Type
Wall Mount
Enclosure Width
24"
Enclosure Composition
Steel
Component
Network Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 1
Enclosure Type
Accessplus Double-Hinge Cabinet
Manufacturer
Hoffman
Features
Wall section provides cable entry and cable management with knockouts or gland plates
Center section easily removed from rear section, tool-less one person installation possible
Self-grounding, plated steel rack angles fully adjustable within center section
Gland plate model provides easy retrofit and fast installation and allows for pre-terminated cables or pre-wired patch panels, no need to re-terminate and test
Front door has either a solid steel or hardened, tinted safety-glass window door for superior scratch resistance
Double-hinged for easy equipment access, center section provides 19-in. rack mounting per EIA universal spacing and is accessed through the front door or swing the center section away from the wall section for rear access
Self-locking center-to-wall section latches in two locations
One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front to-back, is provided with each center section of the cabinet, additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
Vertical cable manager included in 28-in.-wide models
Vented sides provide cross flow ventilation to improve heat dissipation
Front access to all latches (no exposed side latches), cabinet can be installed tightly in corners
Downloads
Hoffman EWMW482430 2D DXF CAD.zipHoffman EWMW482430 3D STEP CAD.zipHoffman EWMW482430 CAD Drawing.zipHoffman EWMW482430 Declaration of Compliance.pdfHoffman EWMW482430 Dimension Drawing.gifHoffman EWMW482430 EU Certification.pdfHoffman EWMW482430 Instruction Manual.pdfHoffman EWMW482430 Instructions.pdfHoffman EWMW482430 Spec Sheet.pdfHoffman EWMW482430 UL Certification.pdf
