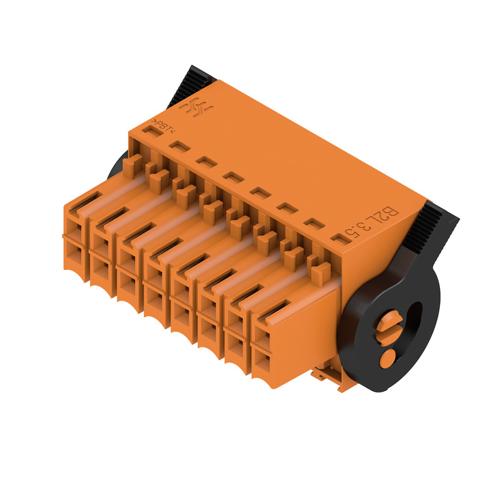

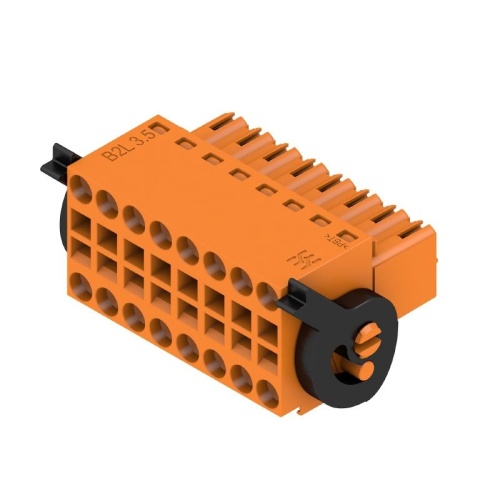

Weidmuller 1748380000 Female Plug - 320 Volt - 16 Pole
Normally In Stock
Code: 198669
Weidmuller 1748380000 - Female Plug - Orange - IP20 - 320 Volt - 16 Pole - Copper Alloy - 3.5 mm Pitch (MUST BUY IN PACKS OF 48)
Condition: New
Usually ships within 4 weeks. Call for ship time.$21.36
Sale Price
$17.80
MUST BUY IN PACKS OF 48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 1748380000 - Weidmuller's B2CF/S2C and B2L/S2L series are compact 2-row connectors with a pitch of 3.50mm. They offer maximum connection density in small spaces and are ideal for sensor cables. These connectors are 30% smaller than a 2.5mm pitch solution but maintain ruggedness. With features like PUSH IN wire connection, finger-touch safe male headers, release latch, halogen-free insulation, large pin markers, and convenient coding, these connectors provide reliable and efficient signal connections. They are suitable for industrial use, process-optimized for automatic assembly, easy to use without tools, and offer easy labeling despite their compact size. Choose Weidmuller's B2CF/S2C and B2L/S2L series for compact, reliable, and high-density signal connections.
Specifications
Connector Color
Orange
Connector Material
Copper Alloy
Connector protection
IP20
Component
PCB Connector
Manufacturer
Weidmuller
Connector Numbers
16 Pole
Sub Component
Female Plug
Connection Type
Tension-Clamp Connection
Connector Voltoltage
320 Volt
Features
Female connectors with tension clamp connection system enable quick and simple wiring.
These female header can be mounted side by side and therefore have a high connection density.
The release lever simplifies the separation of the connection in confined spaces.
The socket blocks provide space for labelling and can be coded.
