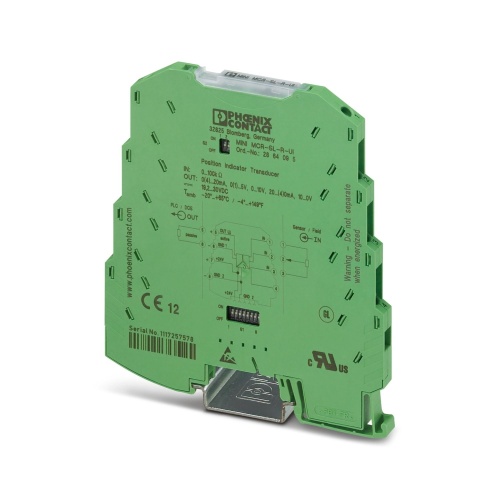

Phoenix Contact 2864095 Resistance/potiposition transducer MINI MCR-SL-R-UI
Normally In Stock
Code: 19841
MINI MCR-SL-R-UI MINI MCR-SL-R-UI Phoenix Contact 2864095 Signal Conditioner Potentiometer Transducer
Condition: New
Usually ships Same Day or Next Day$512.34
Sale Price
$426.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2864095 The MCR potiposition transducer converts potentiometer positions into a standard analog signal over a range of 0 Ω to 100 Ω, and up to 0 kΩ.
Specifications
Conditioner Isolation
3 Way Isolation
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
0-20 Ma
Conditioner Output Signal Range
0-10 Volt
Conditioner Output Signal Range
0-5 Volt
Conditioner Output Signal Range
1-5 Volt
Manufacturer
Phoenix Contact
Conditioner Number Output Signals
1 Output Signal
Conditioner Output Signal Range
4-20 Ma
Component
Signal Conditioner
Features
Power supply possible via the foot element (TBUS)
Automatic potentiometer detection without manual adjustment
Error indication via diagnostic LED and analog signal
For 100 Ω to 100 kΩ potentiometers
potentiometer signals to create standard signals
Configurable measuring range and output signals
Highly-compact potentiometer transducer for electrical isolation, conversion, amplification, and filtering of
Input and output signals can be configured via DIP switches
3-way isolation
A potentiometer sub-range can be linearized via the "teach-in" switch on the device
