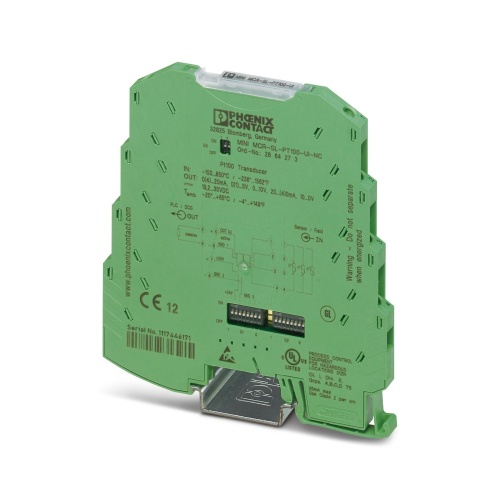

Phoenix Contact 2864273 Resistance thermometer measuring transducer MINI MCR-SL-PT100-UI-NC
Normally In Stock
Code: 19826
MINI MCR-SL-PT100-UI-NC MINI MCR-SL-PT100-UI-NC Phoenix Contact 2864273 Signal Conditioner Temperature Transducer
Condition: New
Usually ships within 7-14 days. Call for ship time.$405.92
Sale Price
$338.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2864273 The MCR temperature transducer is designed specifically for use with Pt 100 temperature sensors and can be easily customized through a set of DIP switches. The device features a screw connection method, allowing users to configure it according to their needs without the need for preprogramming or any additional setup.
Specifications
Conditioner Connection Type
Screw Connection
Conditioner Isolation
3 Way Isolation
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
0-20 Ma
Conditioner Output Signal Range
0-10 Volt
Conditioner Output Signal Range
0-5 Volt
Conditioner Output Signal Range
1-5 Volt
Manufacturer
Phoenix Contact
Conditioner Number Output Signals
1 Output Signal
Conditioner Output Signal Range
4-20 Ma
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Component
Temperature Transducer
Conditioner Output Signal Range
20 Ma - 0 Ma
Conditioner Output Signal Range
20 Ma - 4 Ma
Conditioner Output Signal Range
0 Volt - 10 Volt
Conditioner Output Signal Range
0 Volt - 5 Volt
Conditioner Output Signal Range
1 Volt - 5 Volt
Conditioner Output Signal Range
10 Volt - 0 Volt
Features
Power supply possible via the foot element (TBUS)

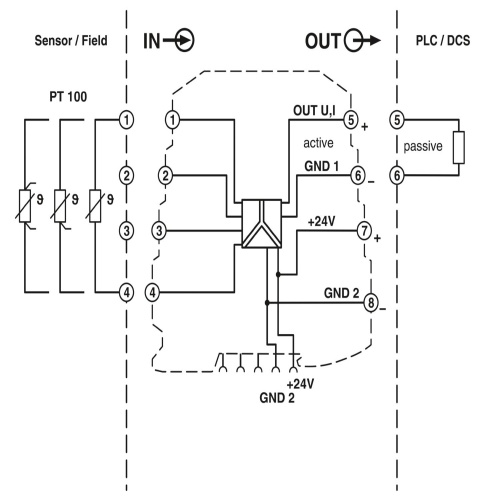

For 2-, 3-, 4-conductor Pt 100 sensors in accordance with IEC 60751
Error indication via diagnostic LED and analog signal
Input and output signals can be configured via DIP switches
Highly-compact temperature transducer for electrical isolation, conversion, amplification, and filtering of
3-way isolation
Pt 100 signals to create standard signals
Temperature measuring range of -150°C to +850°C
Downloads
Phoenix 2864273 CAD data International.dxfPhoenix 2864273 CAD data International.pdfPhoenix 2864273 CAD data International.stpPhoenix 2864273 CAD Drawing.zipPhoenix 2864273 Manual English.pdfPhoenix 2864273 Manufacturers declaration English.pdfPhoenix 2864273 Manufacturers declaration International-2.pdfPhoenix 2864273 Manufacturers declaration International-3.pdfPhoenix 2864273 Manufacturers declaration International.pdfPhoenix 2864273 Package Slip International.pdfPhoenix 2864273 Product Information English.pdfPhoenix 2864273 Product Sheet.pdfPhoenix 2864273 Software International.xlsPhoenix 2864273 Spec Sheet.pdfPhoenix 2864273 Tender Text English.zipPhoenix 2864273 User Manual.pdf
