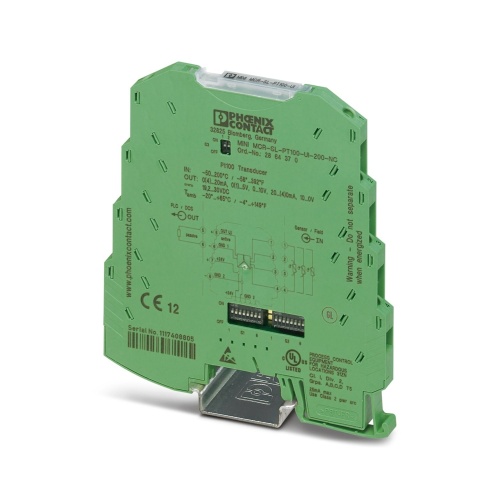

Phoenix Contact 2864370 Temperature measuring transducer MINI MCR-SL-PT100-UI-200-NC
Normally In Stock
Code: 19822
MINI MCR-SL-PT100-UI-200-NC MINI MCR-SL-PT100-UI-200-NC Phoenix Contact 2864370 Signal Conditioner Temperature Transducer
Condition: New
Usually ships within 7-14 days. Call for ship time.$390.77
Sale Price
$325.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2864370 The MCR temperature transducer is a customizable option for Pt 100 temperature sensors that can be secured in place using a screw connection, but it does not have any pre-configured settings.
Specifications
Conditioner Connection Type
Screw Connection
Conditioner Isolation
3 Way Isolation
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
0-20 Ma
Conditioner Output Signal Range
0-10 Volt
Conditioner Output Signal Range
0-5 Volt
Conditioner Output Signal Range
1-5 Volt
Manufacturer
Phoenix Contact
Conditioner Number Output Signals
1 Output Signal
Conditioner Output Signal Range
4-20 Ma
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Component
Temperature Transducer
Conditioner Output Signal Range
20 Ma - 0 Ma
Conditioner Output Signal Range
20 Ma - 4 Ma
Conditioner Output Signal Range
0 Volt - 10 Volt
Conditioner Output Signal Range
0 Volt - 5 Volt
Conditioner Output Signal Range
1 Volt - 5 Volt
Conditioner Output Signal Range
10 Volt - 0 Volt
Features
Power supply possible via the foot element (TBUS)
Optimized temperature measuring range of -50°C to +200°C for increased accuracy

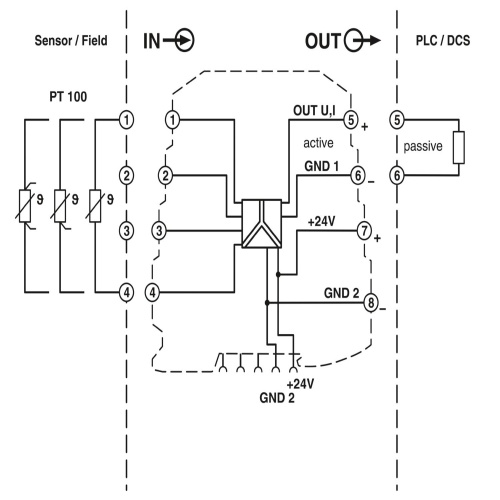

For 2-, 3-, 4-conductor Pt 100 sensors in accordance with IEC 60751
Error indication via diagnostic LED and analog signal
Pt 100 signals to create standard signals
3-way isolation
Highly-compact temperature transducer for electrical isolation, conversion, amplification, and filtering of
Input and output signals can be configured via DIP switches
