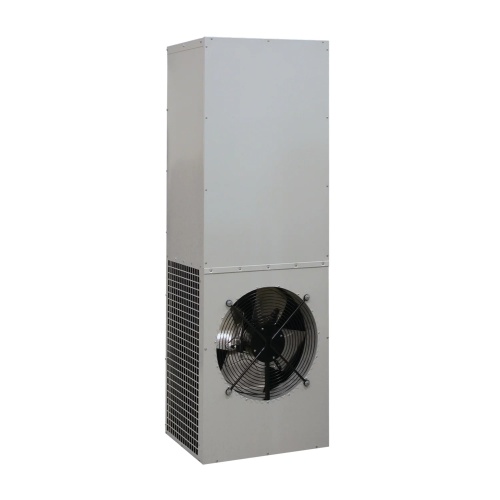

nVent Hoffman T703626G150 T-Series AC 230V 43000 BTU Outdoor
Normally In Stock
Code: 19622
nVent Hoffman T703626G150 Air Conditioner 230V 43,000 BTU AC Type 4 Outdoor with Heat Package, 36 Amp, (69.8"H x 22.8"W x 20.94"D) 12602 nominal watts Side Mount. Ambient temperature range of -40F-131F.
Condition: New
Usually ships Same Day or Next Day$18965.89
Sale Price
$15804.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman T703626G150 Air Conditioner 230V 43,000 BTU AC Type 4 Outdoor with Heat Package, 36 Amp, (69.8"H x 22.8"W x 20.94"D) 12602 nominal watts Side Mount. Ambient temperature range of -40F-131F.
Specifications
AC Mounting
Side Mount
AC Maximum Ambient Temp
131 F
AC Heat Package
Includes Heat Package
AC Voltage
230 VAC
AC Max BTU Rating
43000 BTU
AC Watts
12602
AC Type
Air Conditioner (Compressor)
AC Composition
Steel
AC Environment
Outdoor-Indoor
AC Minimum Ambient Temp
-40 F
Component
Air Conditioner
Line
T-Series
AC Height
70"
AC Depth
21"
AC Width
23"
AC NEMA Rating
NEMA Type 12
AC NEMA Rating
NEMA Type 3R
AC NEMA Rating
NEMA Type 4
AC Amperage
36 Amp
Manufacturer
Hoffman
Features
Operating temperature range from -40 F/-40 C to 131 F/55 C
R-407C refrigerant
Models for 230 and 460 VAC power input
Reliable mechanical thermostat on enclosure side of the unit
Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
Compact footprint to minimize real estate and maximize capacity
Dual condenser-side air movers for performance redundancy
Every unit functionally tested before shipping
Easy-mount flanges for simple installation
Exterior and fully recessed mounting options on many models
Painted galvanized sheet-metal cover for rugged factory and outdoor environments
Standard Outdoor Air Conditioner models include telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
Mounting hardware, gaskets and user manual furnished with the unit
Downloads
Hoffman T703626G150 CAD Drawing.zipHoffman T703626G150 Declaration of Compliance.pdfHoffman T703626G150 EAC Certification.pdfHoffman T703626G150 EU Certification.pdfHoffman T703626G150 Instruction Manual.pdfHoffman T703626G150 Spec Sheet.pdfHoffman T703626G150 UL Certification.pdfHoffman T703626G150 User Manual.pdf
