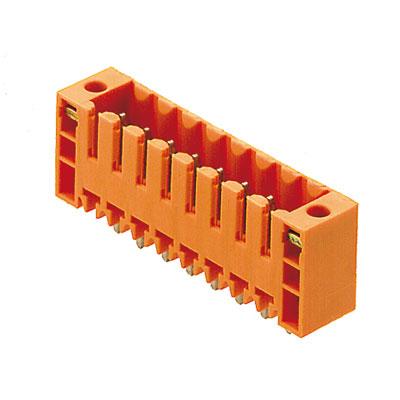

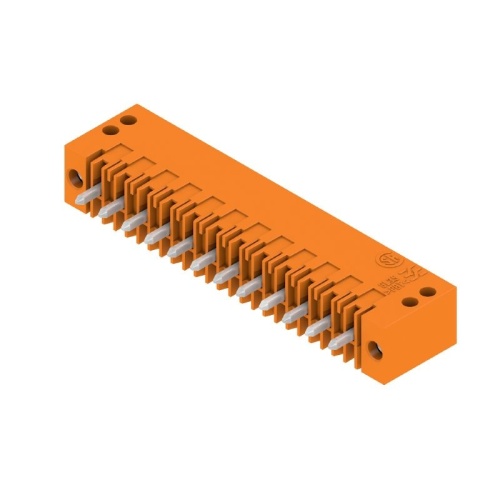

Weidmuller 1607600000 Male Header - 300 Volt - 12 Pole
Normally In Stock
Code: 196010
Weidmuller 1607600000 - Male Header - Orange - 300 Volt - 12 Pole - CuSn - 3.5 mm Pitch (MUST BUY IN PACKS OF 50)
Condition: New
Usually ships within 4 weeks. Call for ship time.$6.13
Sale Price
$5.11
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 1607600000 - Weidmuller's BL/SL 3.50 series features a pitch of 3.50mm (0.138 inch) and offers excellent performance with a relatively small width. This plug-in circuit board connection system is designed for signals or I/Os, providing reliable and efficient connections. The connectors have a large clamping range of 0.20 to 1.5 mm² (IEC) / AWG 28 - 14, allowing for versatile wire sizes. They can handle voltages up to 250 V (IEC) / 300 V (UL) and currents up to 17 A (IEC) / 10 A (UL), making them suitable for various applications. With four connection systems available (tension clamp, clamping yoke, IDC, PUSH IN), these connectors offer flexibility and ease of use. They can also be fully integrated into the reflow process, ensuring efficient assembly.
Specifications
Connector Color
Orange
Connector Material
Cusn
Component
PCB Connector
Manufacturer
Weidmuller
Connector Numbers
12 Pole
Sub Component
Male Header
Connector Voltoltage
300 Volt
Features
Pin headers for wave soldering in 3.50 mm pitch Plugging direction is parallel (90°), straight 180° or angled (135°) to the PCB Housing variant: screw flange (F) Packed in a cardboard box (BX) Pin header can be coded
