Code: 19501

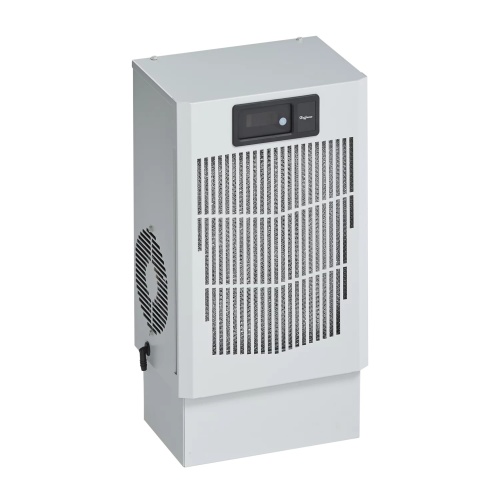

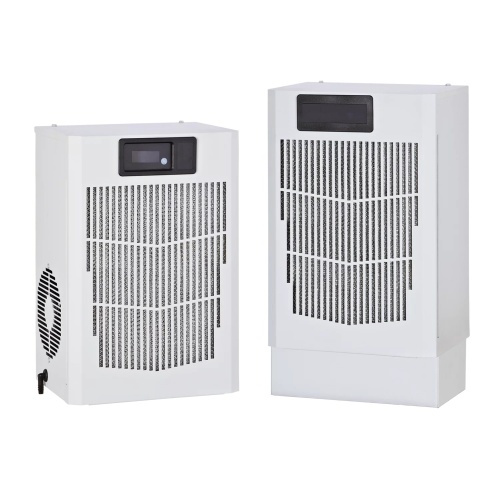

nVent Hoffman N170146G010 Spectracool Compact AC 460V 1025 BTU Indoor
nVent Hoffman Spectracool N170146G010 Air Conditioner 460v 1,025 BTU AC Type 4 Indoor without Heat Package, 1.2 Amp, (21.14"H x 12"W x 8.4"D) 300 nominal watts Side Mount. Ambient temperature range of 50F-125F.
Condition: New
Usually ships Same Day or Next Day$4883.11
Sale Price
$4069.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman Spectracool N170146G010 Air Conditioner 460v 1,025 BTU AC Type 4 Indoor without Heat Package, 1.2 Amp, (21.14"H x 12"W x 8.4"D) 300 nominal watts Side Mount. Ambient temperature range of 50F-125F.
Specifications
AC Height
23"
AC Mounting
Side Mount
AC Maximum Ambient Temp
125 F
AC Voltage
460 VAC
AC Max BTU Rating
1025 BTU
AC Type
Air Conditioner (Compressor)
AC Composition
Steel
AC Environment
Indoor
AC Minimum Ambient Temp
50 F
Component
Air Conditioner
Line
Spectracool
AC Depth
9"
AC Width
13"
AC NEMA Rating
NEMA Type 12
AC Amperage
1.2 Amp
Manufacturer
Hoffman
Acs Watts
300 Watts
Features
Models for 115, 230 and 400/460 VAC power input
Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
R134a refrigerant
Operating temperature range from 50 F/10 C to 125 F/52 C
Attractive industrial design with minimal use of visible fasteners
Narrow design accommodates 12-inch (300 mm) deep cabinets
Reliable mechanical thermostat is located behind the cover of the unit, air conditioner models include digital display on ambient side
Every unit functionally tested before shipping
Easy-mount flanges for simple installation
Galvanized sheet-metal cover for rugged factory and outdoor environments
Dust-resistant condenser coil allows the unit to be run filterless in most applications
All models also include active condensate management, power-off relay for door switch and other system requirements and a malfunction switch
Remote Access Control Units support up to 2 temperature sensors and 10 alarms. They support multiple communication protocols: SNMP, Modbus TCP, Ethernet/IP, and Profinet.
Mounting hardware, gaskets and user manual furnished with the unit
